GSC EJ WRX/STi Beehive Valve Spring Kit (5043)
339.93€
Sold By: Baltic Turbo Motors
GSC Power-Division beehive valve spring kit for the EJ WRX and STi includes 16 titanium retainers an
SKU: GSC-5043
Categories: Performance Parts
Share:

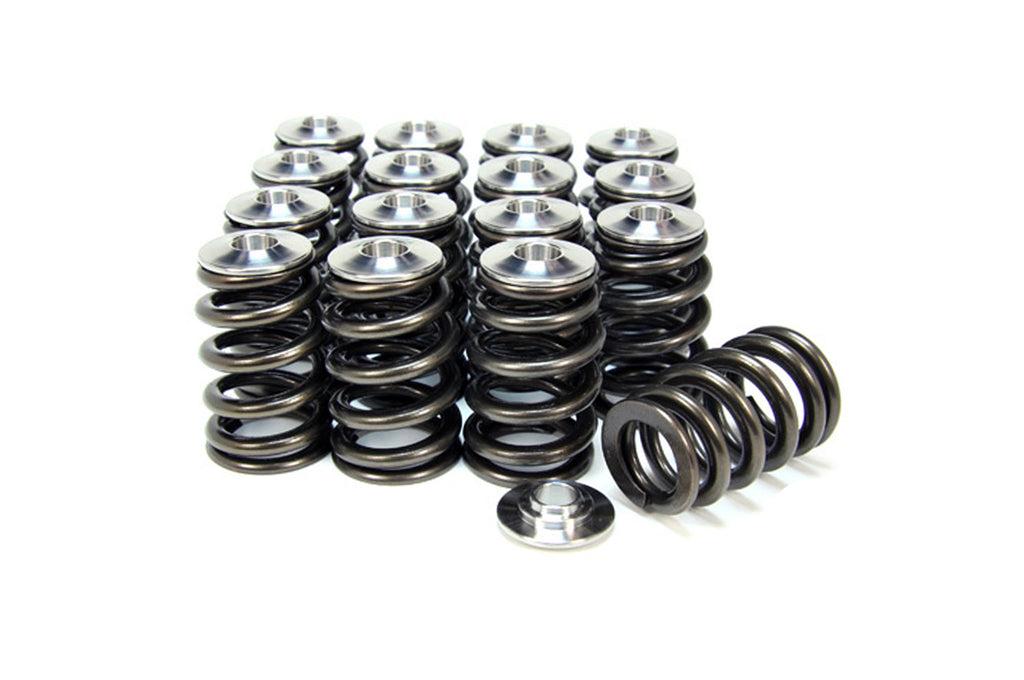

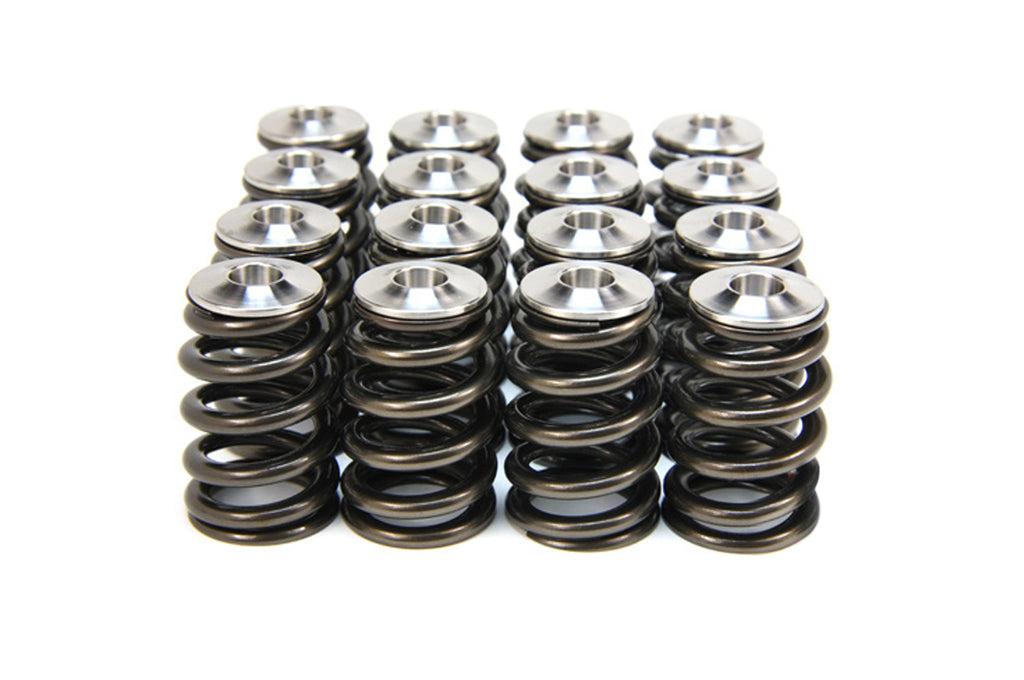

GSC Power-Division beehive valve spring kit for the EJ WRX and STi includes 16 titanium retainers and 16 beehive valve springs.
Vehicle Fitment:
EJ20/EJ25
2002-2014 Subaru WRX
2004-2021 Subaru STi
• 81lbs @ 1.363' install height
• 230 lbs @ 0.910'
Includes:
(16) Titanium Retainers
(16) Beehive Valve Springs
More Info:
GSC beehive springs are made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
Vehicle Fitment:
EJ20/EJ25
2002-2014 Subaru WRX
2004-2021 Subaru STi
• 81lbs @ 1.363' install height
• 230 lbs @ 0.910'
Includes:
(16) Titanium Retainers
(16) Beehive Valve Springs
More Info:
GSC beehive springs are made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
| Part Number: | GSC5043 |
| Springs: | Beehive |
| Retainers: | Titanium |
| Coil Bind: | 0.825' |
| Install Height: | 1.363' |
| Seat Pressure: | 81 lbs |
| Open Pressure, 11.50mm Lift: | 230lbs @ 0.910' |
| Maximum Valve Lift: | 0.478' |
| Max RPM: | 9,500 |
| Max Boost: | 35 psi |
