GReddy DCT Transmission Cooler for R35 GTR

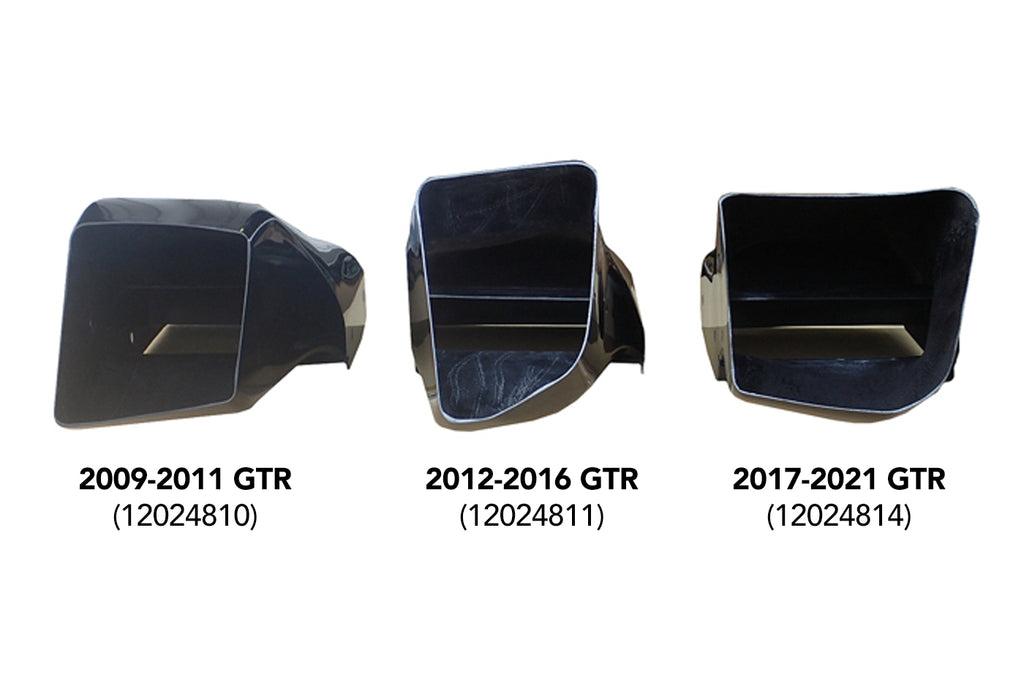

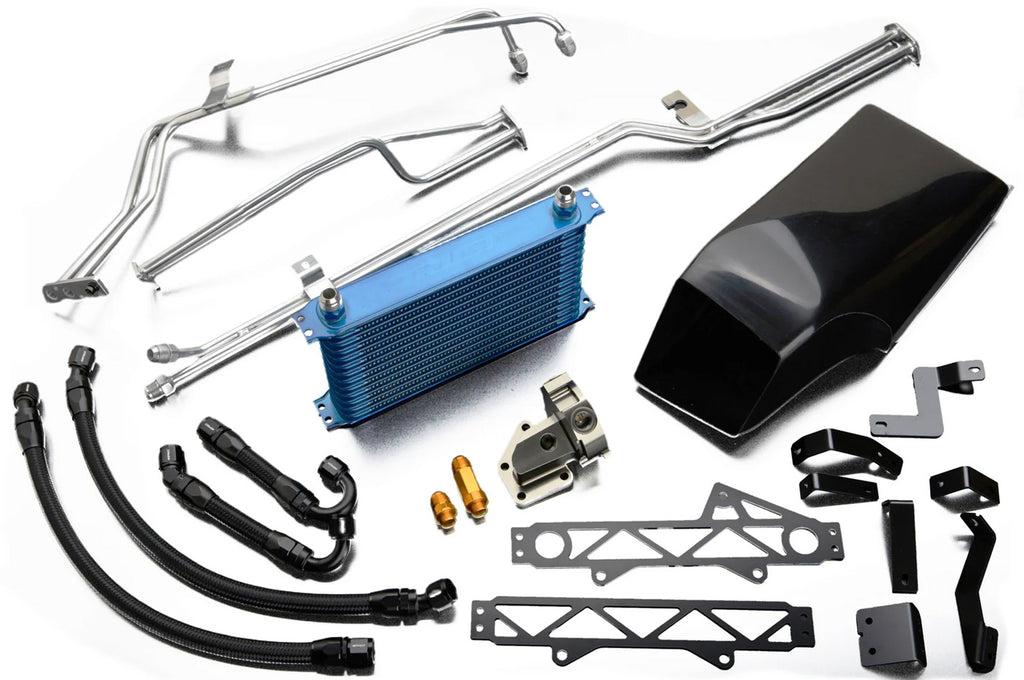

The GReddy DCT (Dual Clutch Transmission) Cooler is available for the 2009-2021 R35 GTR models. The kits vary between the years because the air duct is molded differently. Please select your model year when ordering. Includes the blue oil cooler which mounts in the front fender, lines, hardware and molded air duct.

Vehicle Fitment:
2009+ Nissan R35 GT-R
(VR38DETT)

Specs:
• Machined aluminum oil block for R35GTR (with built-in thermostat)
• A special aluminum pipe runs from the oil block to the core. (Some piping is done with black nylon mesh hose and GReddy fittings)
• Comes with FRP duct with special inner blade.

Notes:

• Option for: CBA, DBA, and MY17 Models (*may fit 22-24 with cutting modifications to MY17 ducting)
• Separate washer tank required. (TRUST CODE:13526111)
• The GReddy R35 Window Washer Tank is an optional upgrade designed to retain window washer functionality when using GReddy’s DCT or front-mounted Intercooler kits.

More Info:

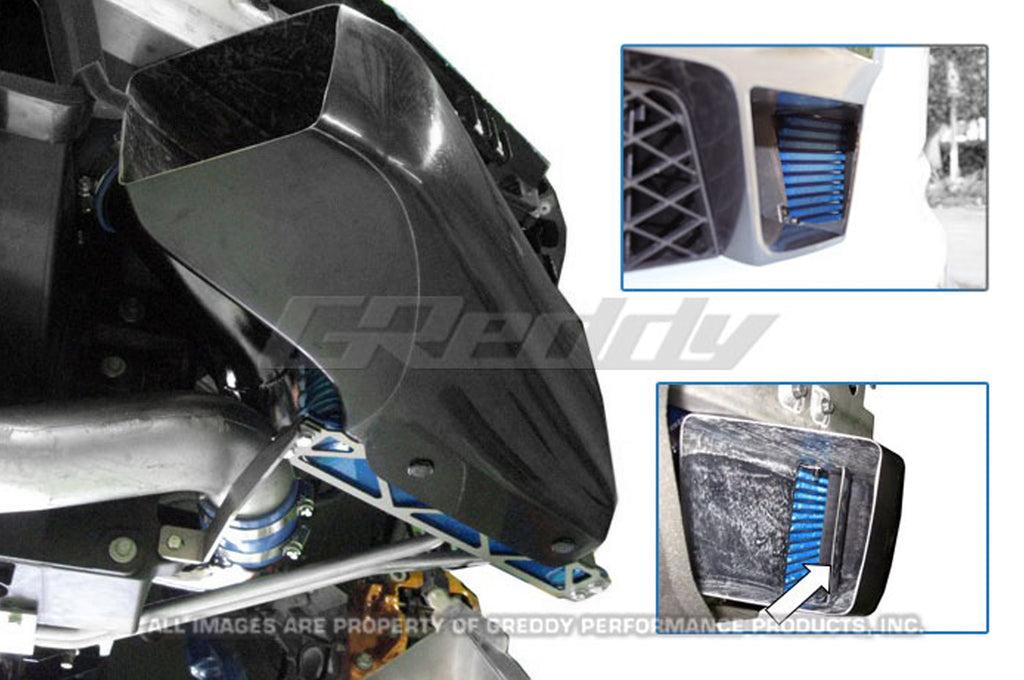

The DCT Cooler features a large 13-row inner fin core coated in the famous GReddy Blue, which mounts in the front fender. Also included is a FRP divided air duct, similar to the OEM unit on the other side of the car for maximum cooling.

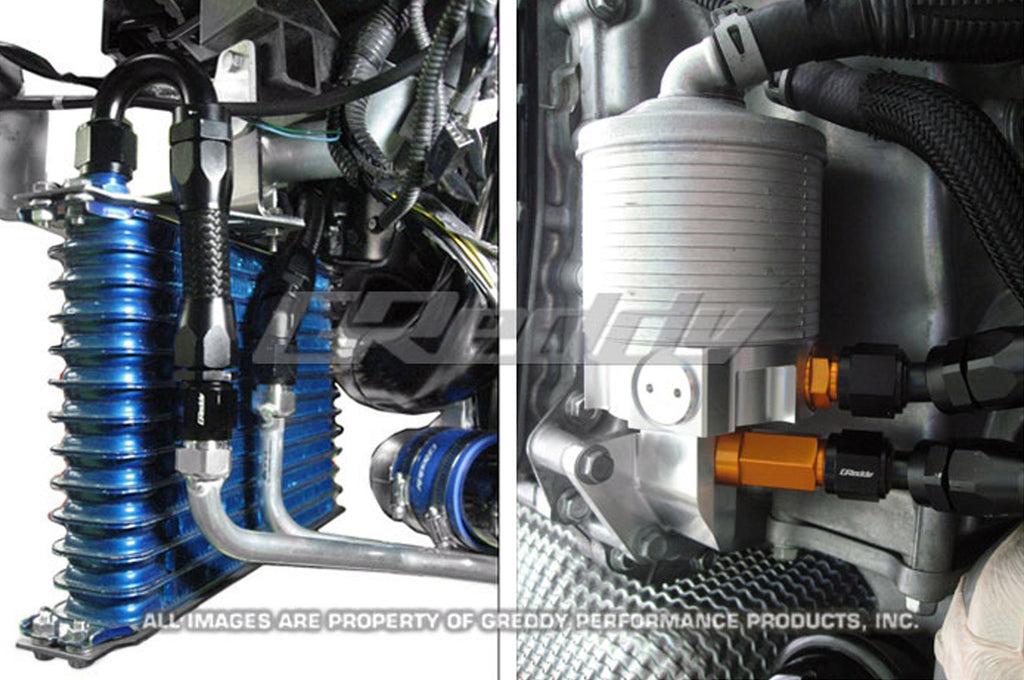

Installation is easy thanks to a specialized GReddy R35 trans oil block. The internal thermostat insures quick fluid warm-up and consistent oil temps, and does not tax the standard coolant system.

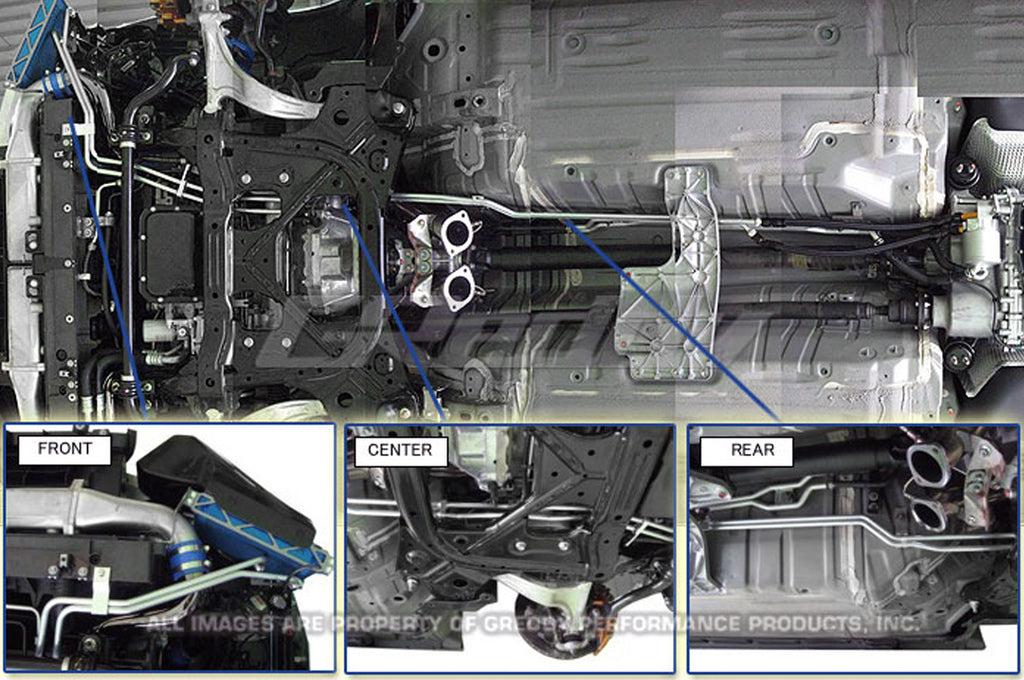

Carefully designed light-weight -14 hard-lines & braided-lines allow for minimal routing lengths and maximum flow. Completing the kit are all the necessary mounts, hose fitting and 3 piece billet flanges with o-rings.

Recommended for Install: (Sold Separately)
GReddy also makes kits specifically to fit with the DCT Cooler.
