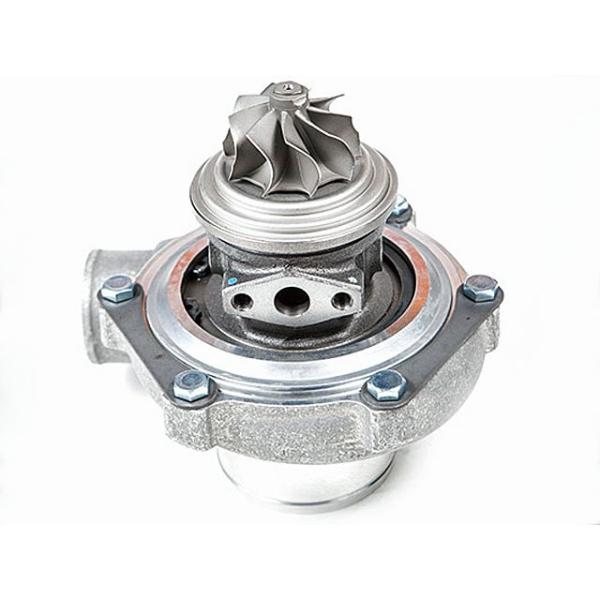

Garrett GTX2967R Dual Ball Bearing Turbo

Garrett GTX2967R Dual Ball Bearing Turbo

PRODUCT DESCRIPTION:

New GTX2967R dual ball bearing turbo with ultra high flow compressor and featuring Garrett 10-Blade technology. 500HP potential flow.

Turbine Housing NOT included and sold separately.

The GTX2967R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers!

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 49.7mm
Compressor Wheel Exducer: 67.4mm
Compressor Wheel Trim: 55
Turbine Wheel Inducer: 56.5mm
Turbine Wheel Exducer: 51.8mm
Turbine Wheel Trim: 84
Standard compressor housing is GT28 Style with 3' inlet, 2' outlet, and built-in & machined anti-surge.

COMPRESSOR HOUSING OPTIONS:
GT28 Style with 3' inlet, 2' outlet, and built-in & machined anti-surge. Default / Standard Option
GT28R Style (aka GT2560R) with 2 Bolt Inlet Flange and 3 Bolt Outlet Flange
GT25R (aka GT2554R) Compact Frame with 2.3 inch inlet and 3 Bolt Outlet Flange
Skyline RB26 Twin Style (2 Bolt Inlet Flange and 3 Bolt Outlet Flange)

APPLICATION NOTES:
Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
Available as a direct drop-in replacement to existing GT28 or GT30 series turbochargers without any modification
Actuator and bracket sold separately

Applicable Garrett Part Numbers: 836041-5001S, 836041-1, 836013-0001

Normally In Stock, Shipping Daily!

TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
