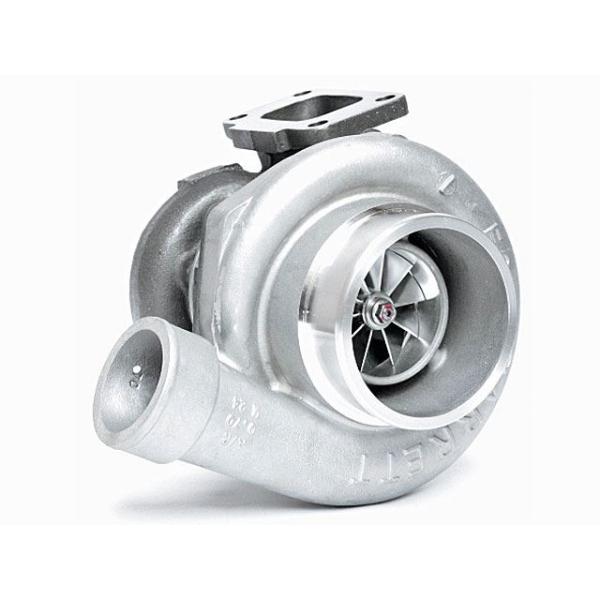

Garrett GTW3884JB (aka GTW6265JB) 64mm Journal Bearing Turbo

Garrett GTW3884JB (aka GTW6265JB) 64mm Journal Bearing Turbo - 841297-5004S

PRODUCT DESCRIPTION:

GTW3884JB (aka GTW6465JB) journal bearing turbo. 900HP potential flow.

GTW Series - Garrett's Performance solution to the popular 6466 size turbo. Great performance at a competitive price!

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 64.3mm
Compressor Wheel Exducer: 84.4mm
Compressor Wheel Trim: 58
Turbine Wheel Inducer: 74.2mm
Turbine Wheel Exducer: 64.6mm
Turbine Wheel Trim: 76
Compressor Housing is T04S Frame with 4' inlet, 2.5' outlet, and built-in & machined anti-surge.

APPLICATION NOTES:
NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.

OIL FITTINGS, FLANGES, AND COMPONENTS:
Oil feed flange: Product Code: ATP-FLA-041
Oil feed gasket: Product Code: ATP-GSK-026
Oil drain flange: Product Code: ATP-FLA-042
Oil drain gasket: Product Code: ATP-GSK-027
8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

TURBINE HOUSING OPTIONS:
T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R)
T3 Non-Divided Inlet and machined V-band 2.5 inch Outlet (Available in .63, .82, or 1.08 A/R)
T3 Non-Divided Inlet and welded V-band 3.0 inch Outlet (Available in .63, .82, or 1.08 A/R)
T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R)
T3 Divided inlet and V-Band, 3.0 inch Outlet (Available in .78 or 1.06 A/R)
T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63, or .82 A/R)
T4 Inlet and V-Band, 3.0 inch Outlet (Available in .68, .81 or .96 A/R)
T4 Divided inlet and V-Band, 3.0 inch Outlet (Available in .70, .84, 1.00, 1.15 A/R)
V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 or .82 A/R). NOTE: V-Band Inlet Clamp & Manifold Flange (Product Code: CLC-CLA-040)

APPLICABLE GARRETT PART NUMBERS:

841297-5004S

CLASS LEGAL IN THE FOLLOWING RACE ORGANIZATION CATEGORIES:
Import Face-Off: Forced Induction Sport Class (AWD manual transmission on DOT tires, RWD with out of manufacturer motor swap)
