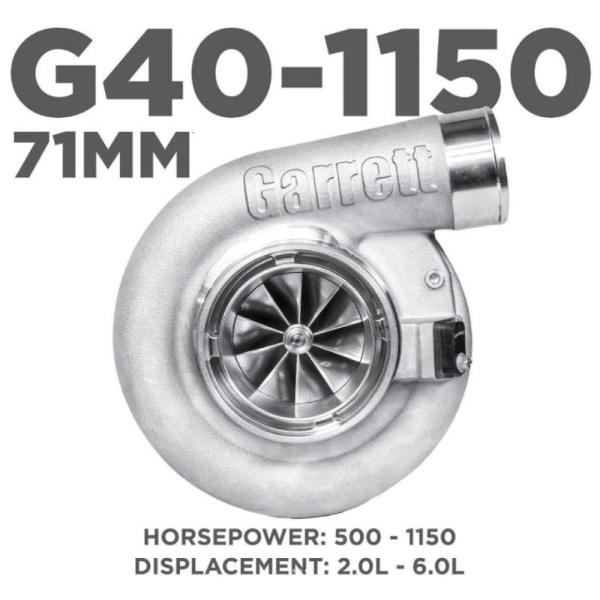

Garrett G40-1150 71mm G Series Turbo

Garrett G40-1150 71mm G Series Turbo - 860777-5002S

Product Description:
• Garrett G40-1150-71mm Supercore w/ Compressor Housing - 860777-5002S

Product Features:
• Quick spooling, high horsepower solution for 2.0 liter up to 6.0 liter engine platforms
• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available with T4 twin scroll inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models

Product Specifications:
• Compressor Wheel Inducer: 71mm
• Compressor Wheel Exducer: 88mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.80
• Turbine Wheel Inducer: 77mm
• Turbine Wheel Exducer: 70mm
• Turbine Wheel Trim: 84

Garrett Part Numbers:
• 860777-5002S

THE ALL NEW GARRETT G SERIES TURBOCHARGERS
Garrett G Series Highlights:

EVOLUTIONARY ULTRA HIGH FLOW G-Series Turbine Wheel
Advanced aerodynamics G Series Compressor Wheel
Compact Standard Package
The Results: +20% More Horsepower & Quicker Spool!!!

Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!

Garrett G Series Turbine Wheel: By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimaginable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius, +200 degrees Celsius over inconel turbine wheels.
