Garrett G25-550 G Series Turbo - T3 .92AR V-Band EWG
1,888.20€
2,230.88€
Sold By: Baltic Turbo Motors
SKU: 858161-5002S-GRT-TBO-K87
Categories: Performance Parts

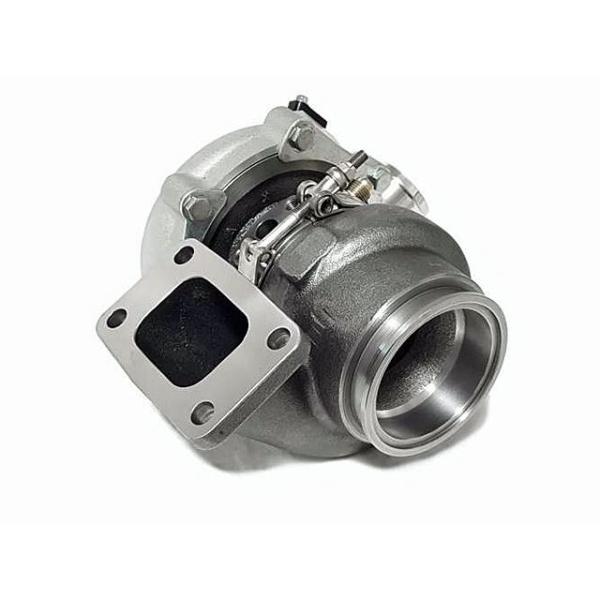

Garrett G25-550 G Series Ball Bearing Turbocharger .92AR T3 V-Band EWG Turbine Housing
'Spools like a 28, Powers like a 30'
In Stock, Shipping Now!
Product Description:
Garrett G-Series G25-550 advanced small frame ball bearing turbocharger with a .92 A/R T3 inlet and v-band outlet turbine housing. 550HP from a small frame package!
Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Garrett Part Number:
858161-5002S (Supercore), GRT-TBO-K87
Specifications
- Part Number: 858161-5002S, GRT-TBO-K87
- Brand: Garrett
- Type of Part: G Series
- Length: 15
- Width: 15
- Height: 15
- Weight: 22.000000
- G Series Horsepower Range: G25-550 48mm (300-550HP)
