Garrett Intercooler for F150 Raptor 2017-2024 (870702-6001)

Garrett bolt on intercooler upgrade for the 2015-2024 Ford Raptor F150 Ecoboost features an 83% larger core to support up to 750 horsepower. Fits both 3.5L & 2.7L Gen2 and Gen3 Ecoboost models.

Vehicle Fitment:
• 2017-2024 Ford F-150 Raptor
• 3.5L & 2.7L EcoBoost models
•

More Info:

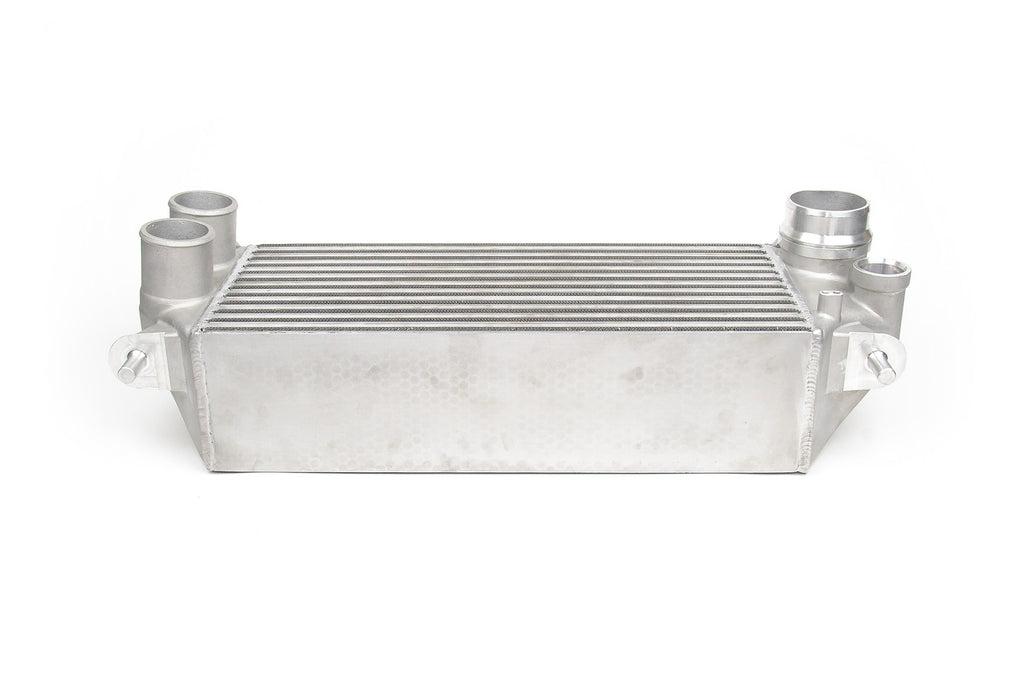

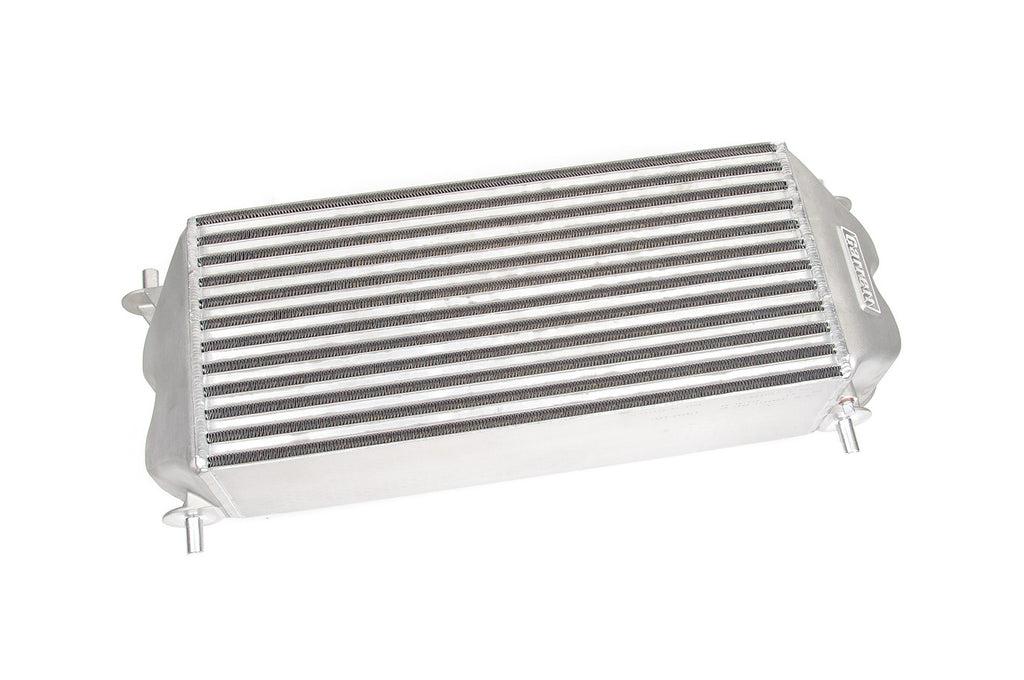

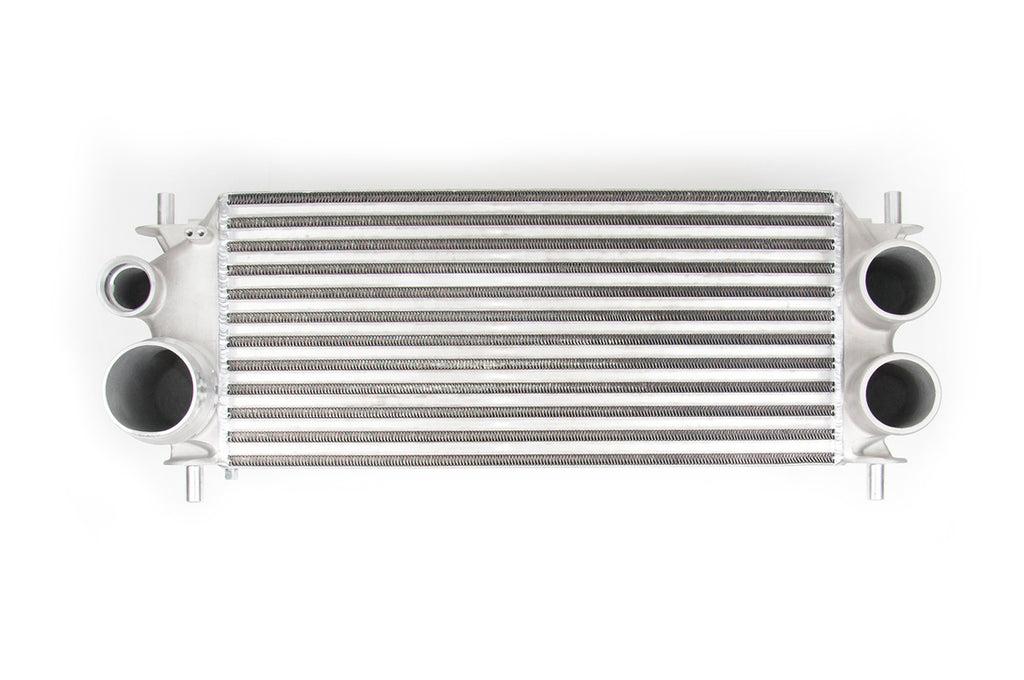

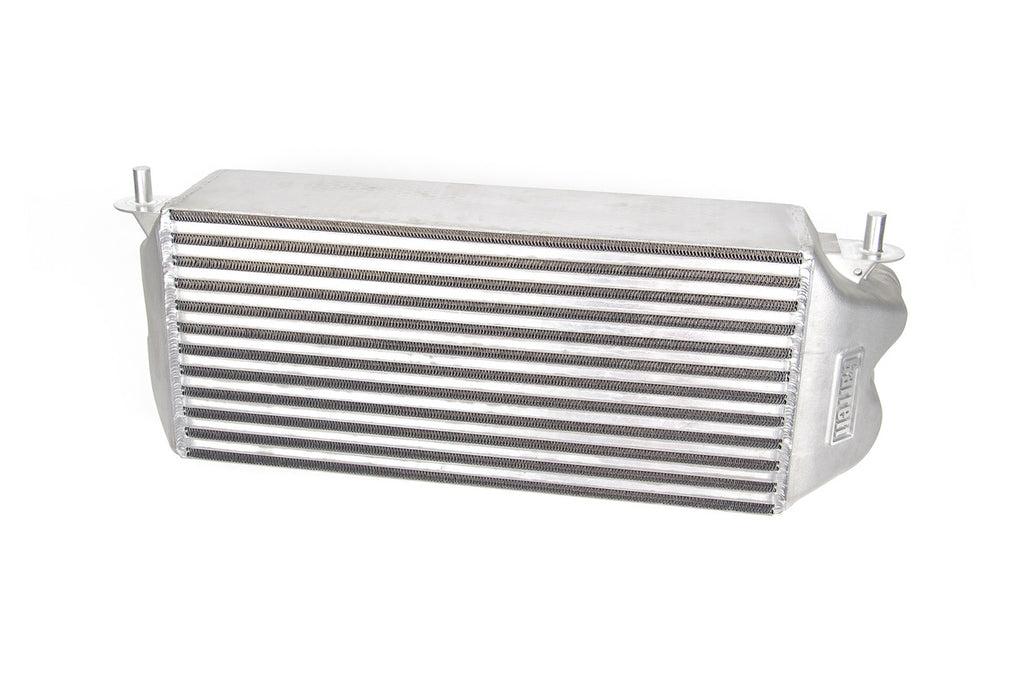

The Garrett direct fit F-150 and Raptor charge air cooler boasts an 83% larger core than stock to provide an estimated 25 degree Fahrenheit reduction in air temperature and a 30% reduction in pressure drop. Optimized end tanks improve air flow through the core by improving turbulent design features found in the stock unit.

This direct fit performance intercooler is easily installed and can support up to 750 horsepower all while reusing the stock bolts, hoses, and clamps. Must remove active grill shutters to install this product.

All aluminum, TIG welded construction increases strength and durability for on road and off road applications.

Features:

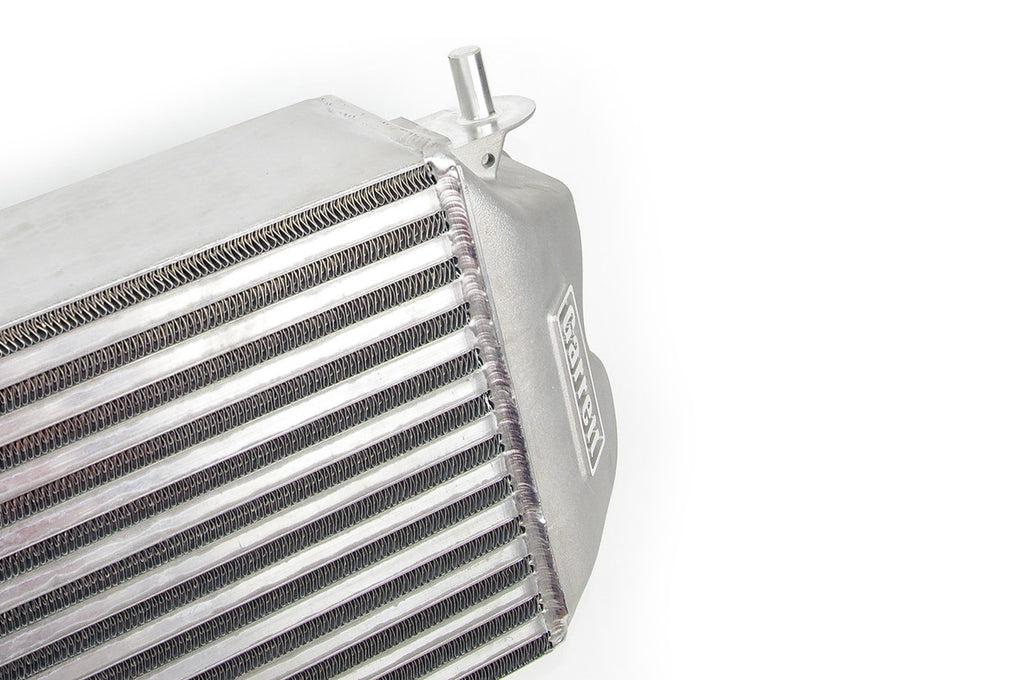

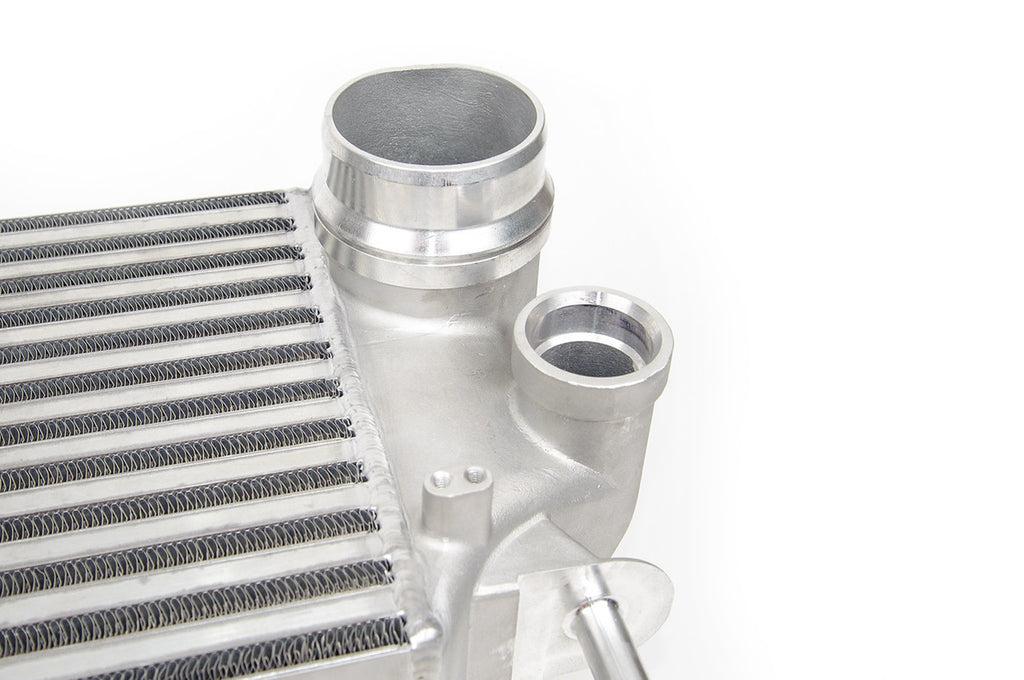

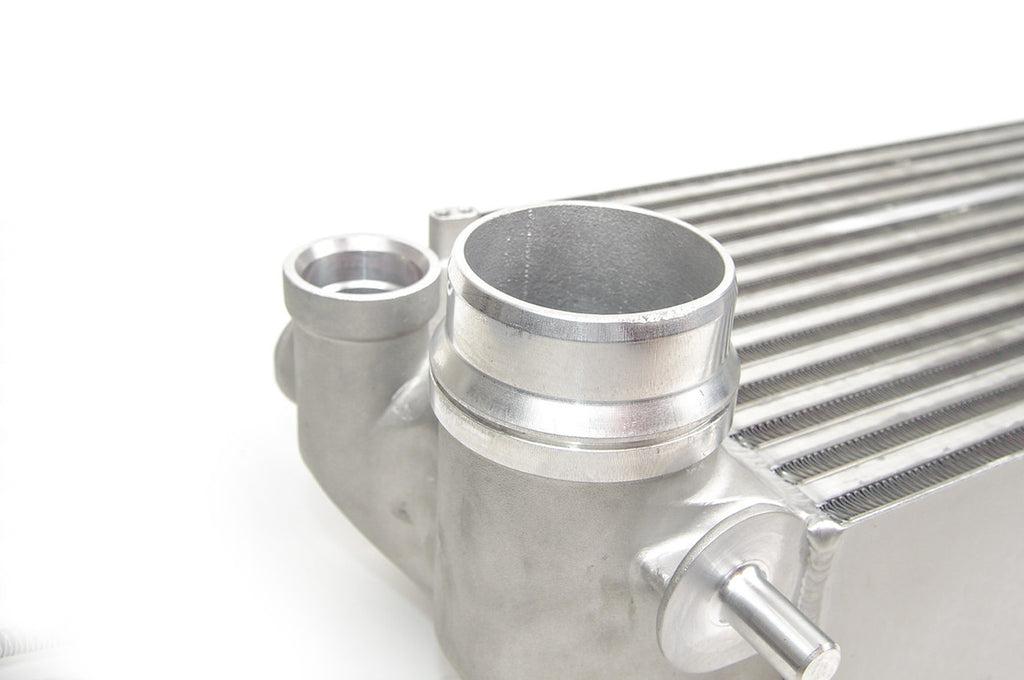

• Cast aluminum end tanks
• Advanced offset fin design
• TIG welded for improved strength
• Vacuum brazed bar-and-plate design
• 83% larger aluminum intercooler core
• Up to 30 degree reduction in charge air temp

Drain Plug Feature:
The Garrett direct fit performance charge air cooler comes with a fully machined drain plug to relieve condensation buildup commonly found in the F150 platform. The bolt can be removed with a 3/8 open ended wrench. Installers can test for condensation by turning the engine on, transmission in park, remove the bolt and place a catch can under the opening. Observe for any fluids. If fluid is present, gently rev the engine several times to dispel. Be sure to dispose of fluid with your local waste management facility.
