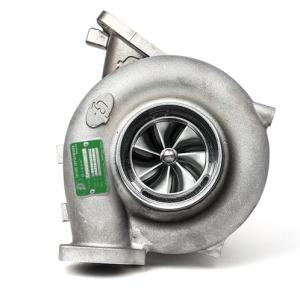

FP Green Evo IX Turbo
1,444.15€
Sold By: Baltic Turbo Motors
SKU: FP-GREEN-JB-EVO9-28
Categories: Performance Parts
Compatible with these models:
Mitsubishi Evolution IV V VI VII VIII IX
Please review all options before purchase!
There is a lot of information on this page. These turbos are available with the journal bearing or ball bearing CHRA and with either the factory-style, bolt-on Mitsubishi housing or the new stainless FP housing which will need a TiAL MVS wastegate and special downpipe/o2. The MHI housing will work with factory-style o2/downpipe and uses an Evo 9 style actuator. The stock Evo 8 actuator will not work. FP no longer offers the porting options.
Shipping Time: (8-10 Weeks)
FP Turbos are built to your spec. These are not in stock. Typical wait time has been 8-10 weeks.
Compressor Cover:
The FP Green will come with the 84mm Flow Advancement Port Cover Surge Cover. You CAN get a stock-appearing 64mm cover with the MHI housing, but please call us to order that combination.
For Evo 4-8 Install:
The FP Turbos are based on the Evo 9 platform. If you have an Evo 4-8, you'll need the Evo 9 j-pipe and water lines. Please check below for which oil feed line you'll need.
Recommended for install: .
FP Part Numbers:
2005010, 2005012, 2005014, 2005016, 2005020, 2005022, 2005024, 2005026

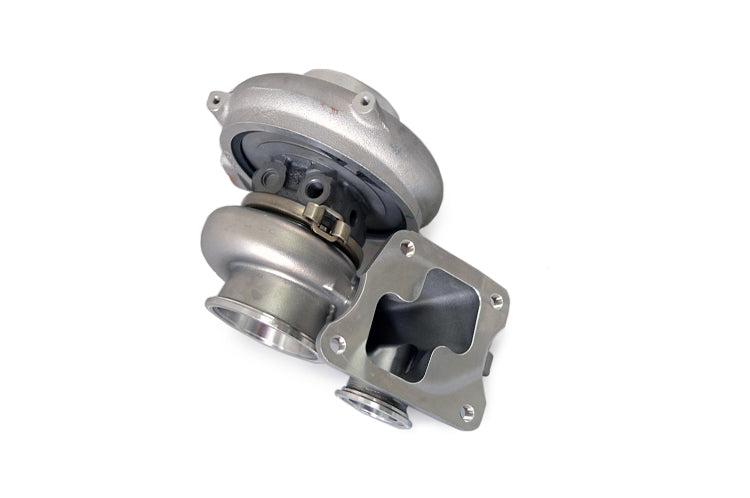

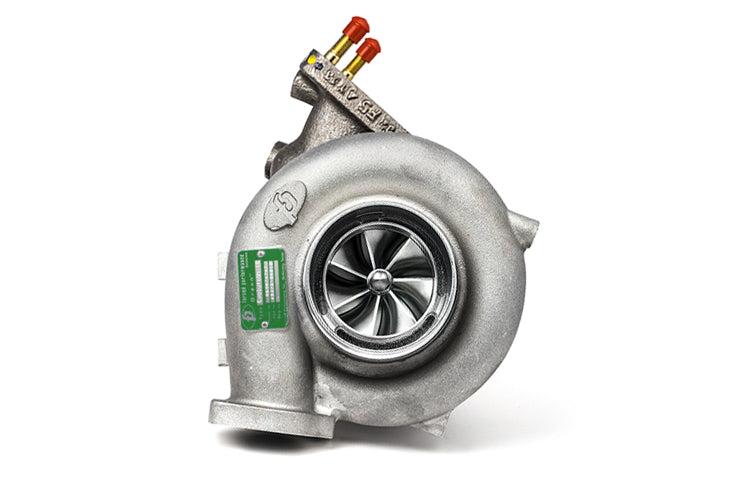

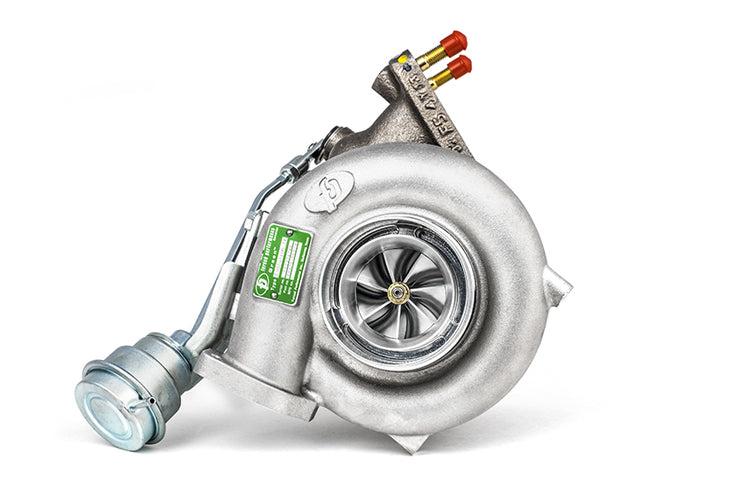

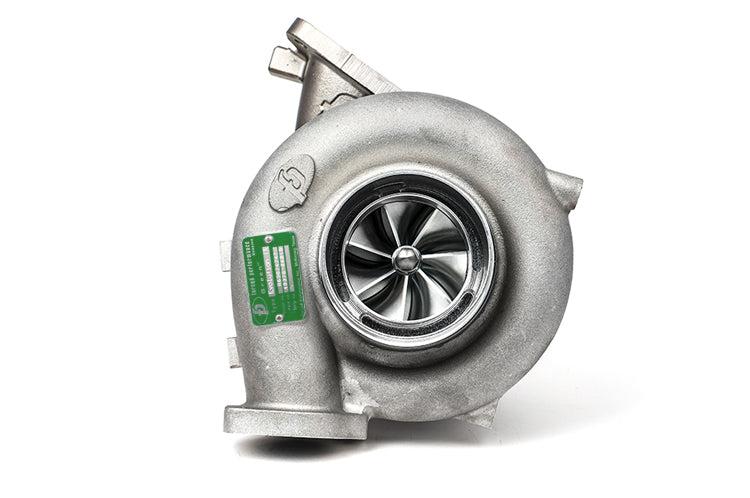

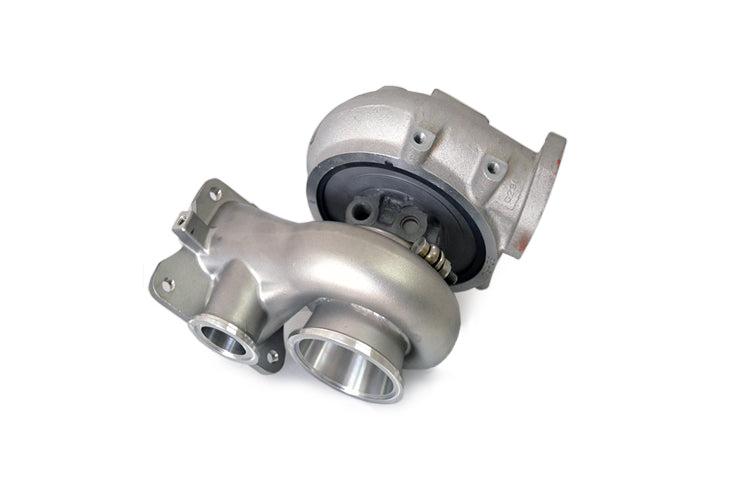

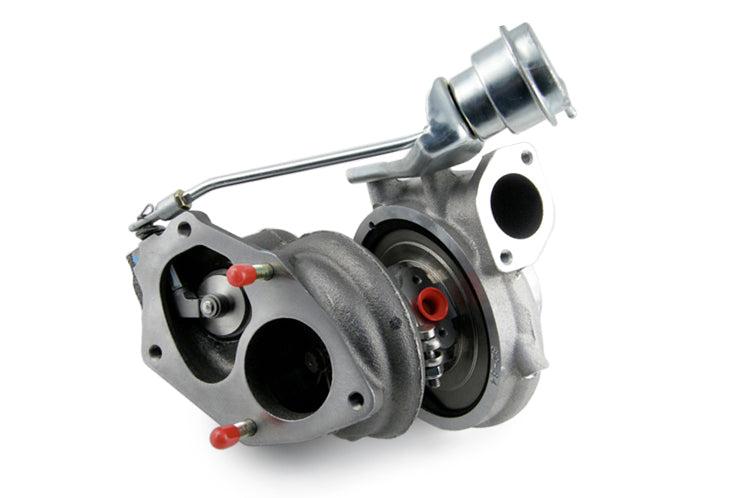

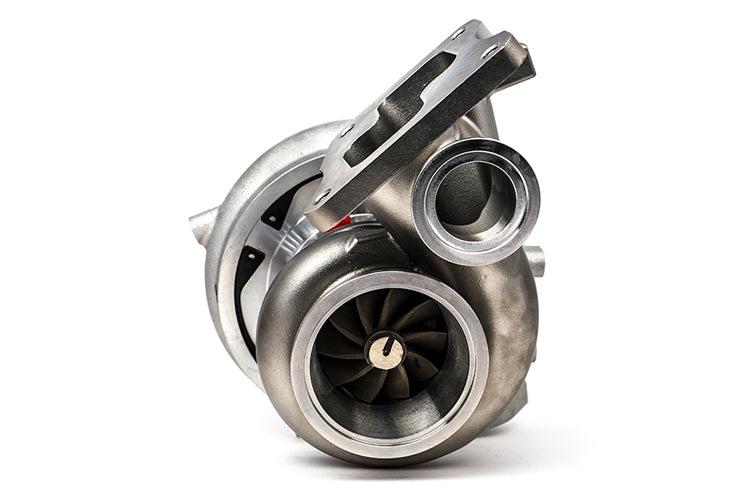

What's the difference between the MHI and Stainless Turbine Housing? | |
MITSUBISHI HOUSING (MHI) | FP STAINLESS HOUSING (SS) |
| Bolts to stock exhaust manifold or aftermarket factory-placement manifold with Mitsu flange. | Bolts to stock exhaust manifold or aftermarket factory-placement manifold with Mitsu flange. |
| Fits factory o2 housing and downpipe or any stock placement aftermarket o2 housing and downpipe combo. | Does NOT fit with any factory-style o2 housing or downpipe. |
| Uses Evo 9 Style Internal Wastegate. (Available with purchase.) | Uses (Not included.) |
| Recommended Options for Install: • • • | Recommended Options for Install: • • • |
| Manifold Gasket (Not Included) • • | Manifold Gasket (Not Included) • |
What's the difference between Journal Bearing and Ball Bearing? | ||
FP Green: | Journal Bearing: | Ball Bearing: |
| CHRA: | FP Journal Bearing | Xona Rotor Dual Ceramic BB |
| Oil Line: | NOT Included. Required for Install. NOT compatible with stock feed lines. NEW FP JB Feed Line is (.) | NOT Included. Compatible with stock feed lines! (Optional) NEW FP SS Feed Line is (.) |
| Compressor Wheel: | 73HTZ | 73HTZ |
| Flow Rating: | 57 lb Per Minute | 57 lb Per Minute |
| Compressor Wheel Inducer: | 52.6mm | 52.6mm |
| Compressor Wheel Exducer: | 73mm | 73mm |
| Turbine Wheel Inducer: | 67.3mm | 67.3mm |
| Turbine Wheel Exducer: | 58.8mm | 58.8mm |
| Compressor Housing: | 84mm Flow Advancement Port Cover | 84mm Flow Advancement Port Cover |
Black Ceramic Coating (+$100): | ||
| You can have your MHI or Stainless housing treated with a black ceramic coating to help keep the heat in, keeping your engine bay cooler and it will look amazing! | ||
