Forte Haltech Elite 1500 Plug n Play

Kia Forte Engine Management | Forte Haltech Elite 1500 Plug n Play Stand Alone ECU for 2010-2013 Kia Forte

It doesn't get much easier than this. 100% full control over your Forte at your fingertips, with a VERY SOLID base map! Grab your TurboKits.com Turbo Kit, Install Haltech Elite 1500 and head to the DYNO Get Ready!

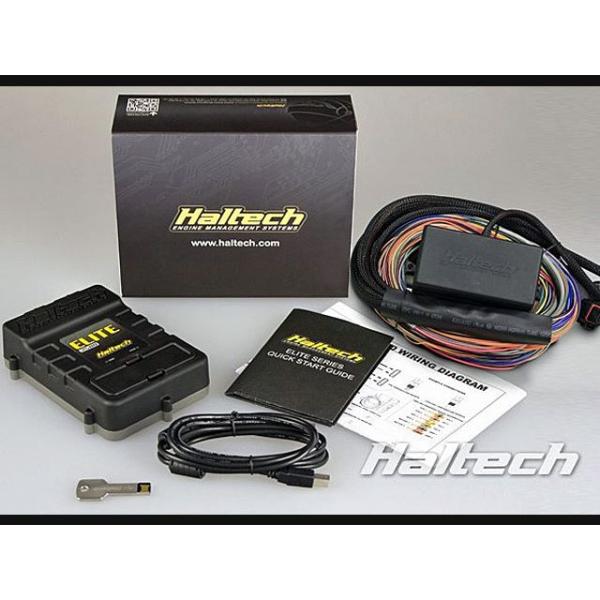

• Haltech Elite 1500 ECU
• Plug n Play Extension Harness w- Ignition Box
• TurboKits.com Custom 2.5bar Map Sensor (Optional)
• Solid Base Map Ready for BOOST!
• USB Cable
• Programming Software CD
• Quick Start Guide

Features:

• Waterproof Case (IP67)
• 4 x Fuel Injection Outputs
• 4 x Ignition Outputs
• 20 x Digital Outputs
• 10 x Analogue Voltage Inputs
• USB Laptop Communications up to 1 MB/s
• Drive By Wire (DBW) Throttle Control
• 6 x Engine Position Inputs w- extensive trigger type support
• Programmable Injector Peak and Hold Currents
• OBDII Capable – Set & clear diagnostic trouble codes, live engine data
• ESP Calibration Software – Intuitive and easy to use
• Dual CAN Bus communication for OEM and Haltech CAN Expansion
• User definable 5D Tuning – Tune by gear, Cam angle, etc
• Variable cam control – Independently control up to 4 camshafts
• Auto tuning – Short & Long term fuel, ignition, boost & idle learning
• Staged Fuelling – Up to four stages of injectors
• Single Channel Knock Control – high speed digital filtering
• Multi-fuel Support – Support for Gasoline, LPG, Methanol & Ethanol
• E85 Flex Fuel Ready – With additional boost tables
• Closed Loop Boost Control – Tune by gear, wheel speed, time
• Closed Loop Idle Control – With learning for consistent idle stability
• Closed Loop 02 Control – Dual bank control for precise tuning
• Anti-Lag and Launch Control – Drag and Rally modes
• Data logging – Internal memory & external laptop logging
• Multi Level Engine Protection – Set limits for sensors & protects engine
• ECU comes fully enabled, no additional charges for advanced features

Unit MUST be installed in cabin
