EXEDY Twin Organic Clutch Kit for Evo 4-9 (MM022SDF)
1,605.30€
Sold By: Baltic Turbo Motors
SKU: EXE-MM022SDF
Categories: Performance Parts
Vehicle Fitment:
• 2001-2006 CT9A Evolution 7/8/9
• 1996-2001 CP9A CN9A Evo 4/5/6
Why do I need a twin plate clutch?
Multi plate clutch kits (Twin & Triple Disc) simply put have more than one clutch disc. The stock clutch comes with one disc and by having two or three discs, you essentially double or triple the surface area to be clamped. If you are like most Evo owners, you have probably doubled or tripled your power... so you need to compensate with a more powerful clutch. There will also be intermediate plates between the discs and especially with the Triple kits, when you push in the clutch pedal, you'll hear those plates rattling around free. That's totally normal and fun to mess with your friends.
Features:
• Street / Race
• Purple Anodized Forged Aluminum Clutch Cover
• Pull-Type Design
• Organic Sprung Discs
• Rated for 500 WHP
MM022SDF Twin Organic Evo 4-9 Clutch Kit
| Notes | Hyper Twin Organic Clutch Sprung Center Disc Pull Type Cover |
| Clamp Load | 2652 |
| Disc Diameter (Inches) | 7.9 |
| Disc Diameter (Millimeters) | 215 |

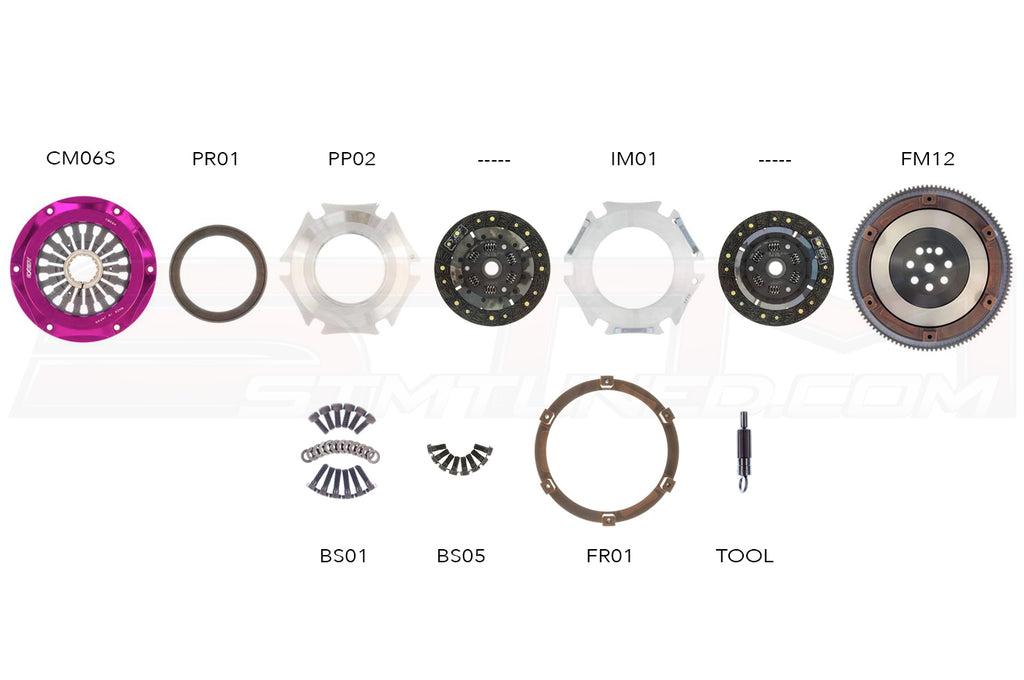

| Kit Contents | CM06S, PP02, IM01, FR01, FM12, BS05, BS01, PR01 and Alignment Tool |
| Spline Count | 23 |
| Spline Size (Inches) | 1-1/16 |
| Spline Size (Millimeters) | 26.2 |
| Torque Capacity (ft/lbs.) | 553 |
Completely Rebuildable!
Check the link below, we have all the options you'll need when it comes time to rebuild!
* We are double checking the replacement disc part numbers with EXEDY now now and we will have them all online soon!
Install Notes:
• Flywheel to Crank Bolt (ft-lb): 99
• Pressure Plate Assembly to Flywheel (ft-lb): 23
Need rebuild parts?
•
