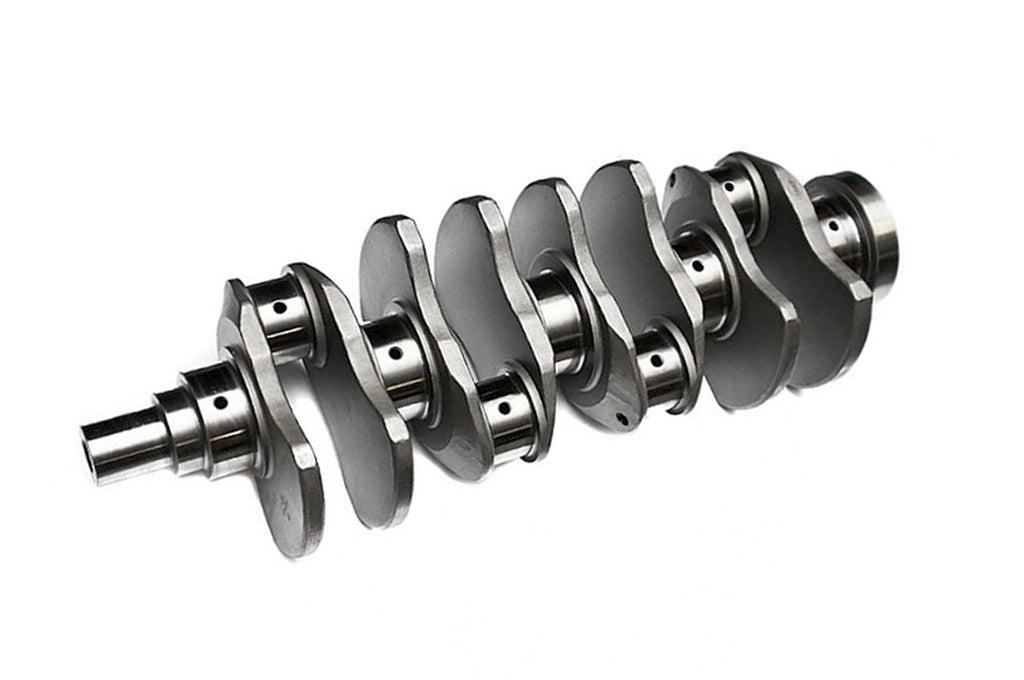

Eagle Forged Crankshaft for 4G63 7-Bolt Evo/DSM

Eagle forged 4340 steel crankshafts for 4G63 7-bolt Evo 1-9 and DSM. Available in 3 stroke sizes 88mm, 94mm and 100mm, please do all your research and consult your engine builder if necessary before purchase. If you need help, just give us a call!

Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992-1993 Evolution I CD9A
1994-1995 Evolution II-III CE9A

Important Notes:
Crankshaft must be balanced to match your specific rods and pistons.

Eagle forged 4340 steel cranks feature a non-twist forging, .125' fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to <, 2 ra. Intended for the most demanding applications.

Specs:
• Material: Forged 4340 Steel
• Intended Balance: Internal
• Rod Journal: 1.771'
• Rod Journal Width: 1.05'
• Main Journals: 2.244'
• Minimum Rod Length: 5.900'
• Typical Weight: 34 Pounds
• Snout Diameter: 1.26'

Purchase Includes:
(1) Crankshaft
