DSS 800HP Rear Axle/Hub Kit for Evo 2/3/4

Driveshaft Shop Level 5 800HP Rear Axle/Hub system for the Evo 2/3/4 models. Features heavy duty 32 spline center bars, up from the factory 30 spline, that are made from high grade aircraft quality material and are significantly more torsional than the factory bars. Billet ball and cage inner CV's with an aerospace grade chromoly spline into the differential, an outer CV that is about 30% larger than stock with larger internals. New hubs are included to accomodate the larger spline and ARP studs. ABS Rings are not included. Rated to 800HP with a 1-year warranty.

Vehicle Fitment:
1994-1997 Evolution II III IV

For Viscous LSD (MI30):
The left axle uses a long double spline into the differential.

For Mechanical LSD (MI31):
These axles use the same differential spline on both left and right axles.

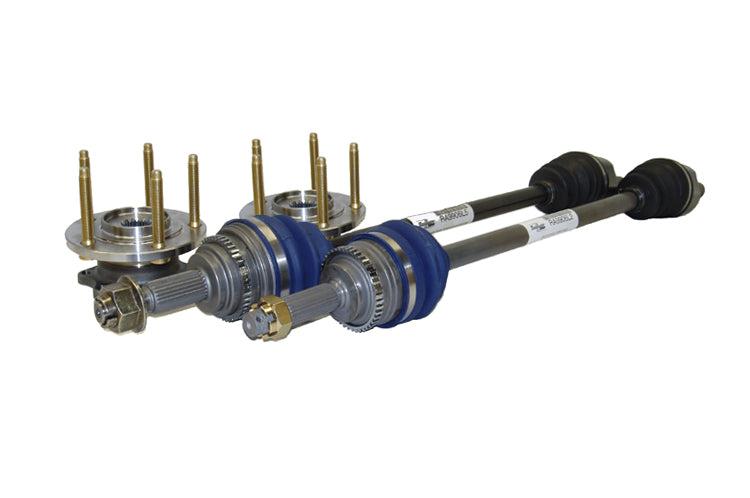

Pictured:
Image is for representation. New pics coming soon!
