Deatschwerks DW650iL 650LPH Brushless External Fuel Pump (SPEED)

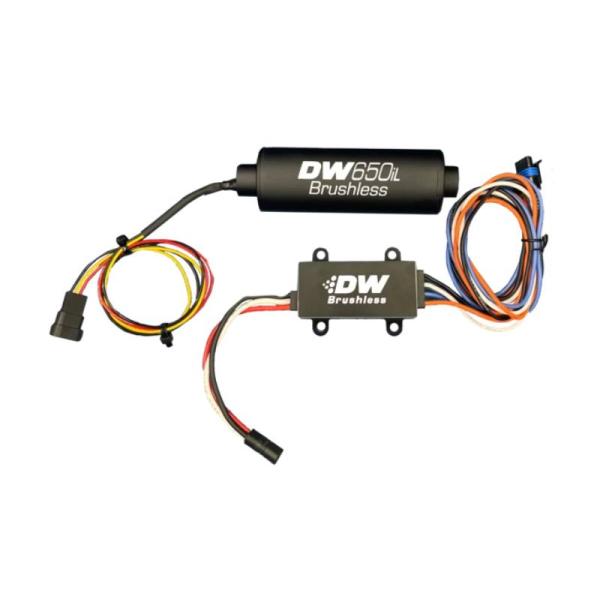

Deatschwerks DW650iL 650LPH Brushless External Fuel Pump with Single Speed / Dual Speed Controller - 9-650-C105

The DW650iL brings brushless technology to DW's line of in-line fuel pumps. Brushless technology reduces friction and heat, increases efficiency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.

9-650-C105 w- Single/Dual Speed Controller. Single-Speed is the simple 100%% duty cycle 'contact on', Dual-Speed allows you to operate the DW650iL Brushless at low duty cycle during normal driving conditions and full duty during high load conditions.

Innovative Quality:
• 650LPH at 40psi 13.8v
• -8an Inlet and Outlet
• Compatible with all fuels including methanol and E100
• No Brushes + No Commutator = Ultimate Durability

Specs:
• Weight: 22oz (622grams)
• External Material: Hard Anodized Aluminum
• Inlet Fitting: -8 AN ORB
• Outlet Fitting -8 AN ORB
• PRV Activation: NA
• Impeller Design: Positive Displacement Screw
• Connector Terminal: Pre-Terminated Connector
• Min Voltage Input: 8 Volts
• Max Voltage Input: 26 Volts
• Current Draw @ 40 PSI: 7.6 Amps (13.5v)

Notes:
This pump does not have an internal check valve
Optional In-Tank Install Kit Available (see options)

THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY, UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION
