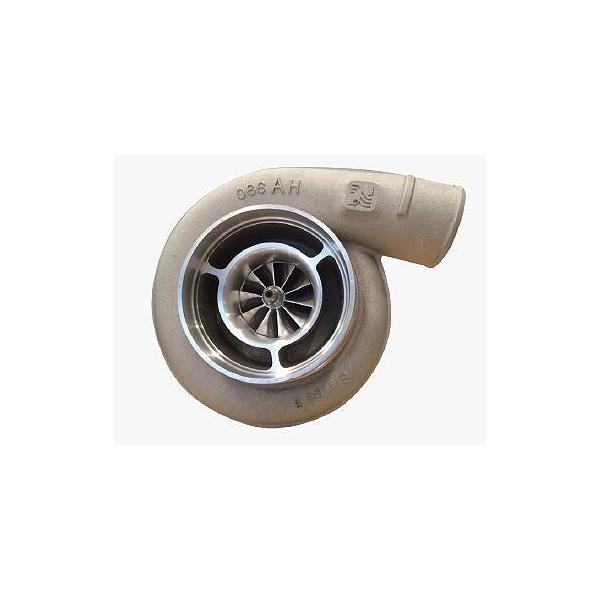

Borg Warner S472SX-E – 72mm Enhanced S400 SXE 9687 Class Limit Turbo

Borg Warner S472SX-E – 72mm Enhanced S400 SXE 9687 Class Limit Turbo - 14879880082

BorgWarner 72.0mm SX-E is designed for drag racing in competitive 72mm limited inducer applications. It has also found success with high power diesels. Utilizing state of the art 10 full-blade “C10” compressor design, this turbo is capable of flowing massive airflow rates in excess of 110 lbs/min. Higher airflow rates make this an excellent match for high-boost and high-power applications. Oil-Cooled Journal Bearing only.

Compressor Specifications:
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 96mm
Compressor Wheel Inducer: 72mm
Max Flow Rate: 110 lb/min

Compressor Housing Connections:

Inlet: 5.5″ Hose Coupler
Outlet: 3″ Hose Coupler

Turbine Specifications:
Turbine Type: Inconel S400SX Turbine Wheel
Turbine Wheel OD: 87.37mm
Housing Material: D5S sandcast

Housing Size and A/R ratio: S400SX-E 9687 (S472SX-E) is available in four (4) different turbine housing configurations:

0.90 A/R T4 Single Scroll
1.00 A/R T4 Twin Scroll
1.10 A/R T4 Twin Scroll
1.25 A/R T4 Twin Scroll (Recommended for 30+psi Boost Levels)

BorgWarner SX-E Turbo Features:
Forged milled compressor wheels with Optimized compressor blade aerodynamics
all-new severe duty 360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options: coupler or vband
Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
