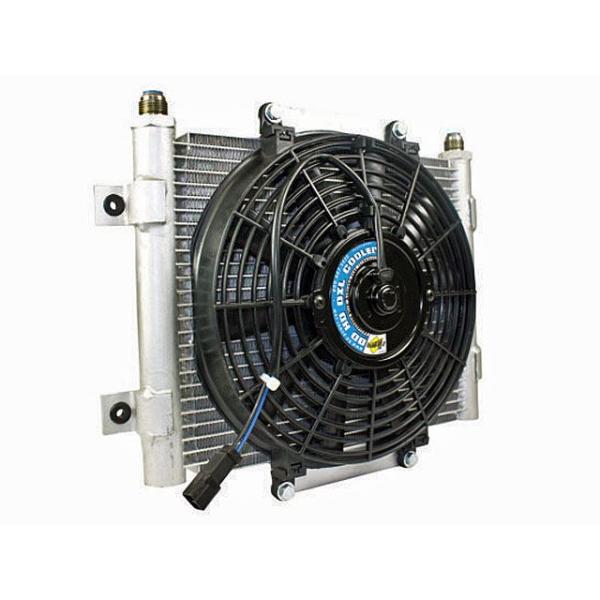

BD Diesel Xtrude Trans Cooler with Fan 5.5 inch
282.81€
Sold By: Baltic Turbo Motors
SKU: 1300611-32560
Categories: Performance Parts
22% more cooling over other designs
200 Micro Extruded passages
Large surface area to transfer heat for external air flow cooling
Turbulent oil flow design promotes a more complete cooling
Large 5/8-inch ports prevents inlet/outlet restriction
Furnace brazed rails have been tested to 300psi of pressure
80-watt, 10-inch, 800 CFM electric fan
33,930 BTU/HR and in excess of 30,000 GVW!
Motor is IP54 with 65% duty cycle
Cooler Assembly Only
Warranty
Parts
12-Months
24,000 Miles
Note
Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
Exceeding the duty cycle may result in voiding the warranty
Specifications
- Part Number: 1300611
- Brand: BD Diesel
- Type of Part: Cooling
- Engine Fitment: Powerstroke 7.3L
- Length: 10.0
- Width: 18.0
- Height: 13.0
- Weight: 12.000000
