ATP Garrett GTX2967R Drop-In Turbo Upgrade (560HP)
1,430.10€
1,552.94€
Sold By: Baltic Turbo Motors
SKU: GRT-TBO-509
Categories: Performance Parts

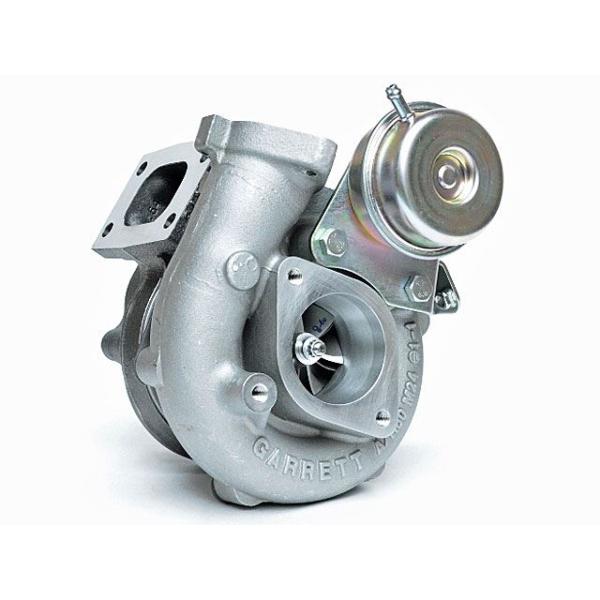

ATP Garrett GTX2967R - SR20DET Drop-In Turbo Upgrade for 1989-1998 Nissan 240SX - GRT-TBO-509
PRODUCT DESCRIPTION:
New GTX2967R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
Includes internally gated T25 flanged turbine housing (available in either .64 A/R or .86 A/R) and internal wastegate actuator (12 to 14PSI).
The GTX2967R features an ultra high flow compressor wheel and Garrett 10-Blade technology. 560HP potential flow.
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 49.7mm
Compressor Wheel Exducer: 67.4mm
Compressor Wheel Trim: 55
Turbine Wheel Inducer: 56.5mm
Turbine Wheel Exducer: 51.8mm
Turbine Wheel Trim: 84
Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
Internal Wastegate Actuator (12 to 14PSI)
TURBINE HOUSING OPTIONS:
T25 Inlet, 5 Bolt Outlet, and internally gated (Available in .64 or .86 A/R)
APPLICATION NOTES:
Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
APPLICABLE GARRETT PART NUMBERS:
836041-5001S
836041-1
836013-0001
Specifications
- Part Number: GRT-TBO-509
- Brand: Garrett
- Type of Part: Turbo Upgrades
- Engine Fitment: SR20DET
- Length: 15
- Width: 15
- Height: 15
- Weight: 30.000000
