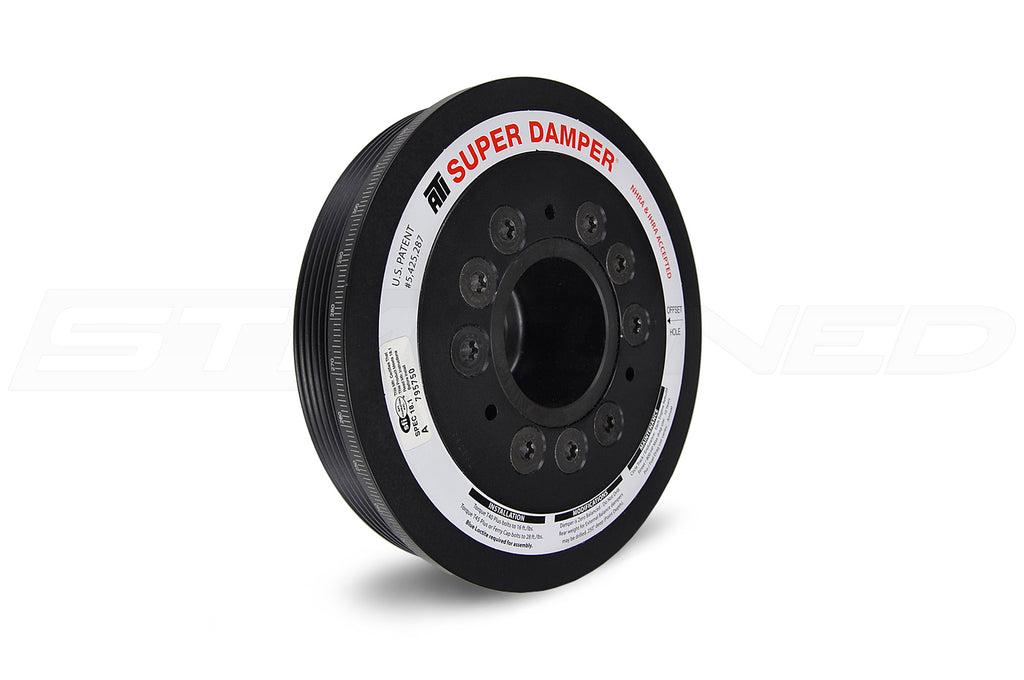

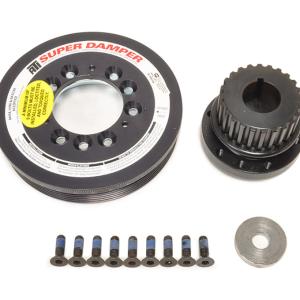

ATI Super Damper Crank Pulley for 4G63 Evo 4-9 (918250)

The ATI Super Damper crankshaft pulley for Evo 4-9 is suitable for high power street and race use. Direct replacement for the stock OEM damper. The damper's outer diameter is 6.325', 12% larger than OEM. The factory lower timing cover will need to be trimmed for hub clearance.

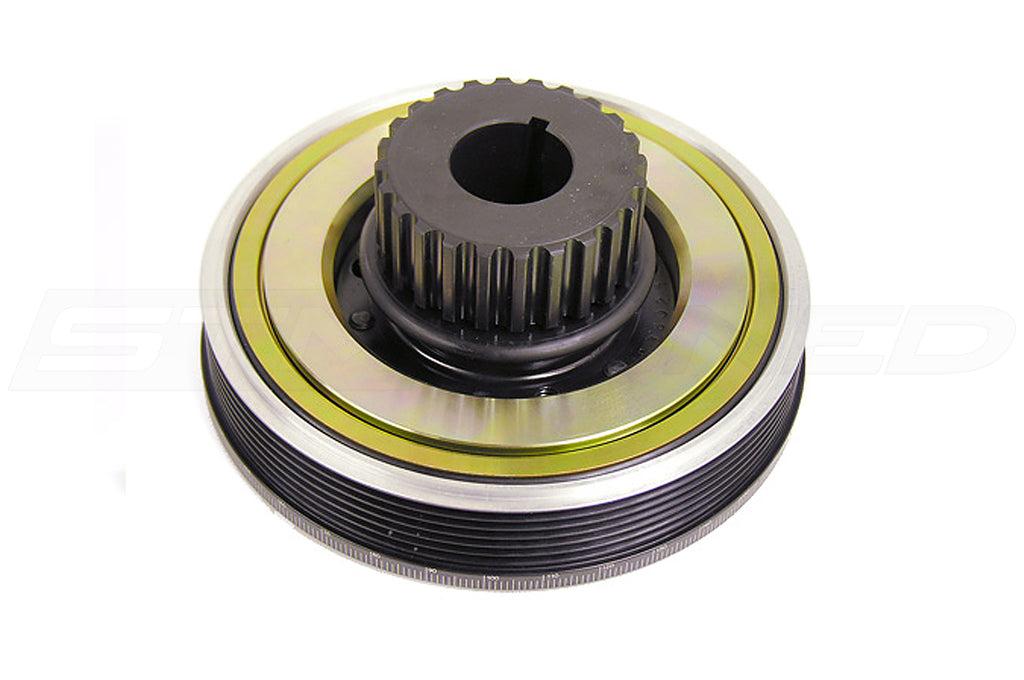

The heart of this unit is the tried and true 'damper within a damper' design that has put ATI ahead of the rest. The outer shell is machined to utilize the factory serpentine belt set-up and mounts to the factory crank via a custom hub which replaces the stock timing gear.

Vehicle Fitment:
1996-2006 Evolution IV V VI VII VIII IX 4G63

Features:
• High horsepower street & race use
• Dampens torsional crankshaft vibrations at all RPM levels
• Protects against engine harmonics
• Direct replacement for the stock OEM damper
• 6.325' diameter, 12% overdriven
• For correct belt length, use Gates (K060715)

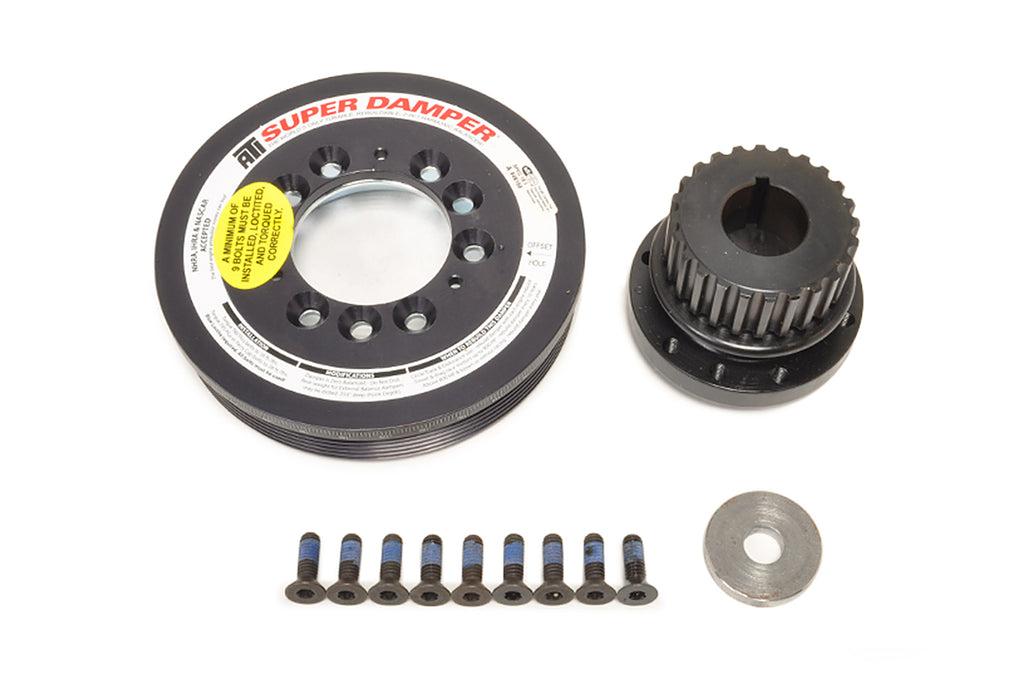

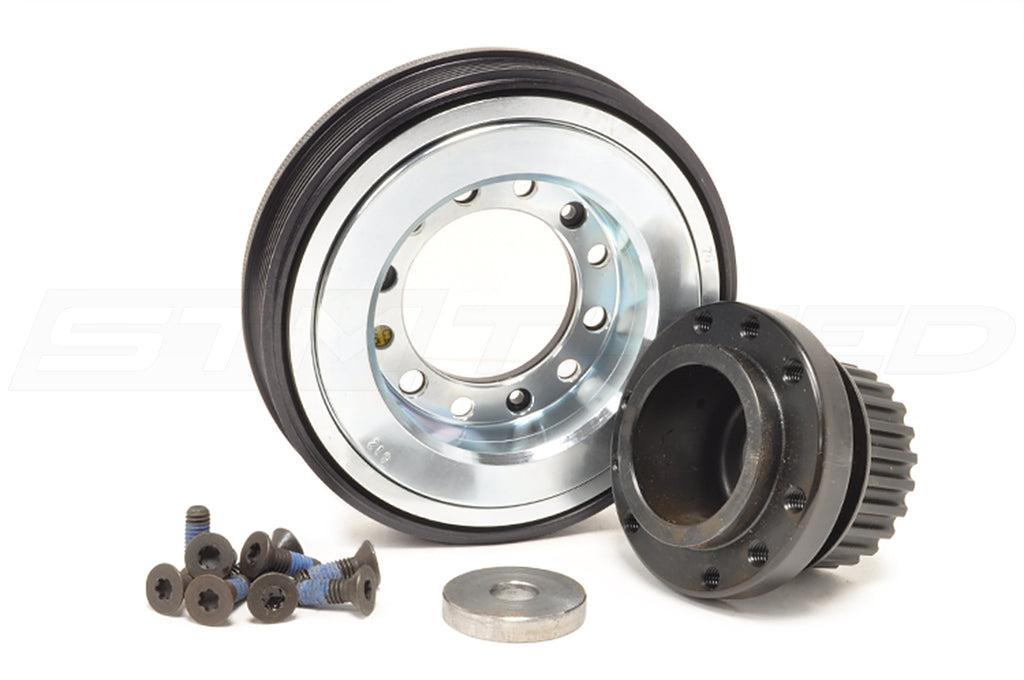

• Custom timing gear hub replaces the stock timing gear

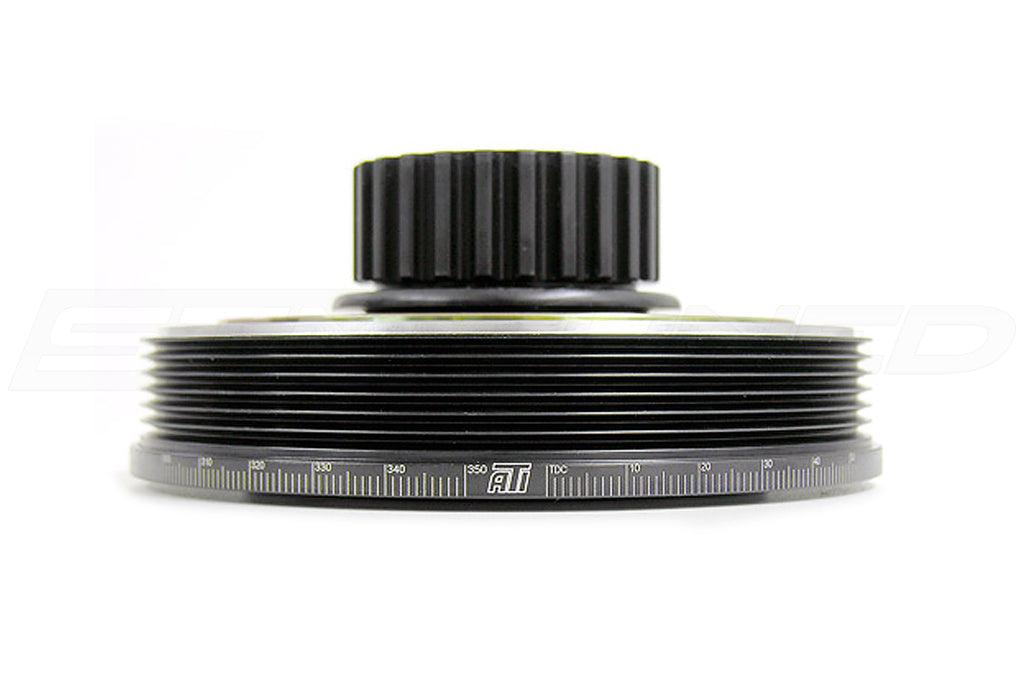

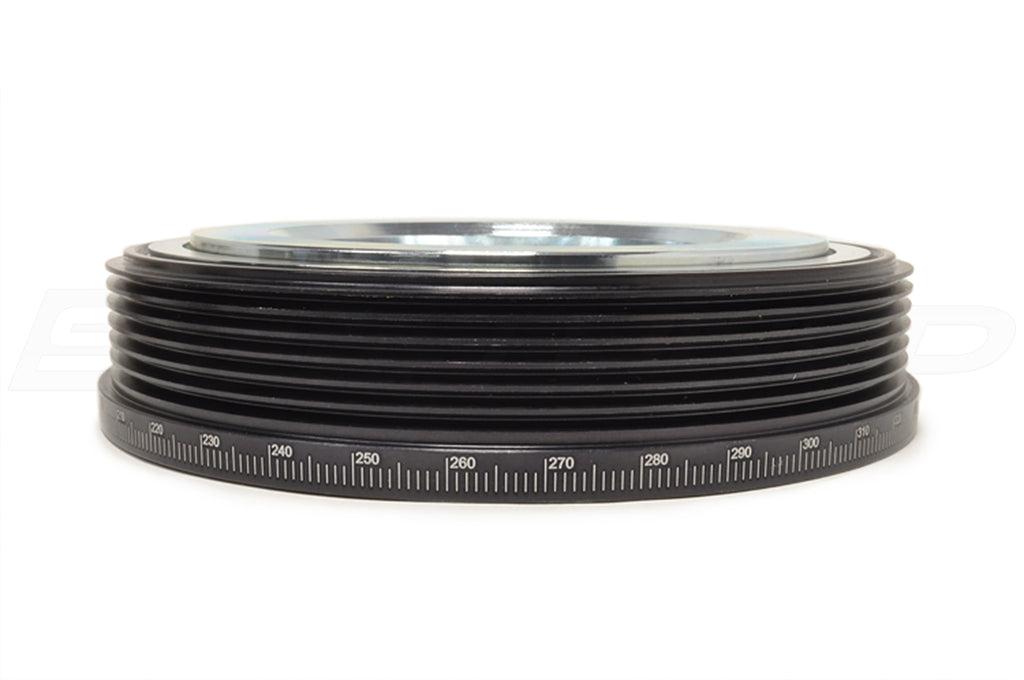

• Laser-etched timing marks
• SFI 18.1 Certified for competition use

Specs:
• Shell Material: 6.325' Aluminum, 6-rib drive, 12% Overdriven
• Hub Material: Steel with Timing Gear drive, #916025, 1.263' Bore
• Inertia Weight: 2.4 lbs, 3 ring
