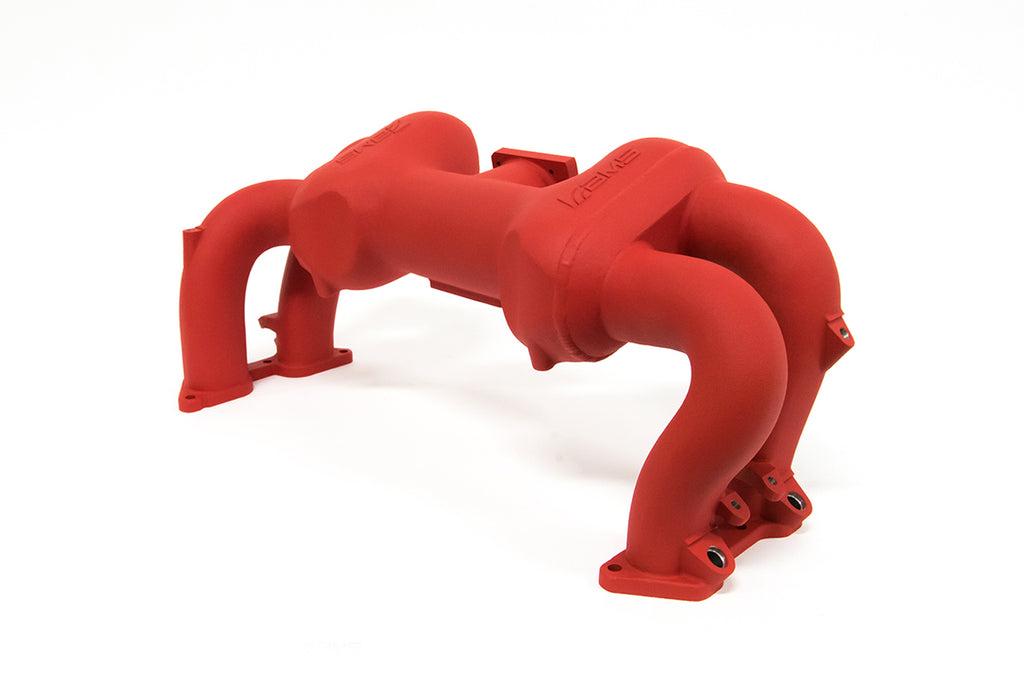

AMS Intake Manifold for Subaru EJ WRX/STi

The AMS Subaru Intake Manifold was designed to outperform the competition! AMS referenced many modern design examples and engineering studies to bring you the best intake manifold available for the EJ20 and EJ25 WRX & STi. After extensive testing, AMS ended up with a manifold that makes more power than anything else currently available on the market.

Vehicle Fitment:
• 2002-2005 Subaru WRX EJ20 (Requires adapter to use WRX style drive by cable throttle body)
• 2006-2007 Subaru WRX EJ25
• 2008-2014 Subaru WRX EJ25 (Requires using STi style drive by wire throttle body)
• 2004-2020 Subaru STi EJ25 (2008+ STI may require mild clearancing of A/C compressor line)
• Will fit various Legacy and Forester EJ25 applications with proper throttle body usage and custom fitting

Benefits:
• 4.5 Liter Plenum Volume

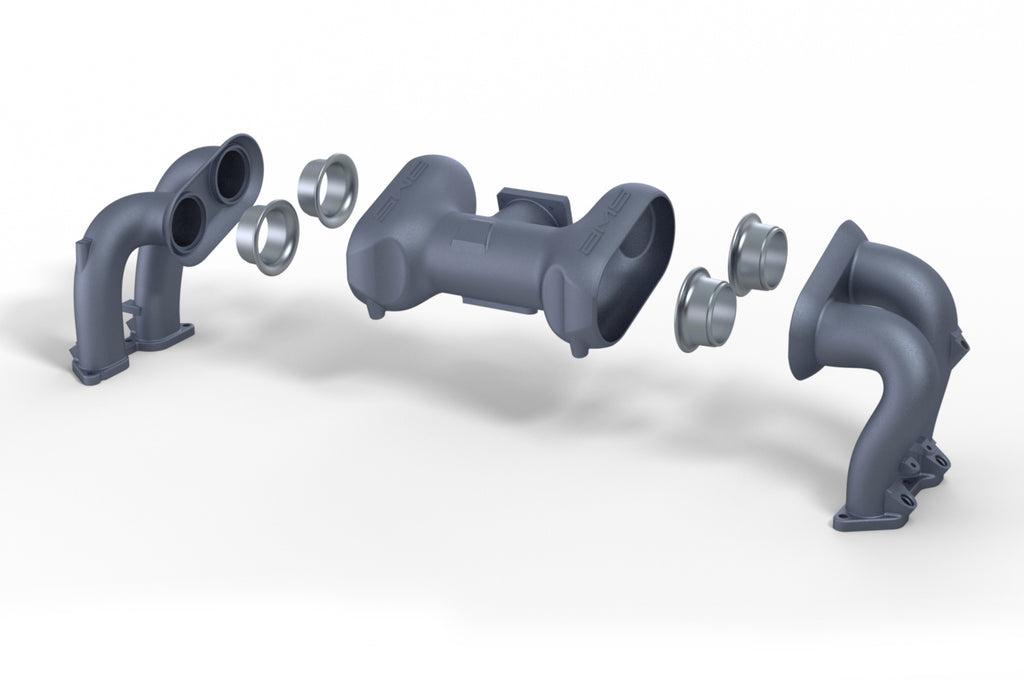

• 13” Equal Length Intake Runners (Measured from Face of Bellhorn to End of Runner)
• 2.5” (63.5mm) Intake Runner Diameter (ID of Bellhorn)
• Bellhorn OD 3.8” (96.7mm)
• TGV Housing Replaced with Long Runner Design
• Increased Port Size at Cylinder Heads Allow Matching to Larger Hand Ported or CNC Ported Cylinder Heads
• Available in Standard or Reversed Configuration

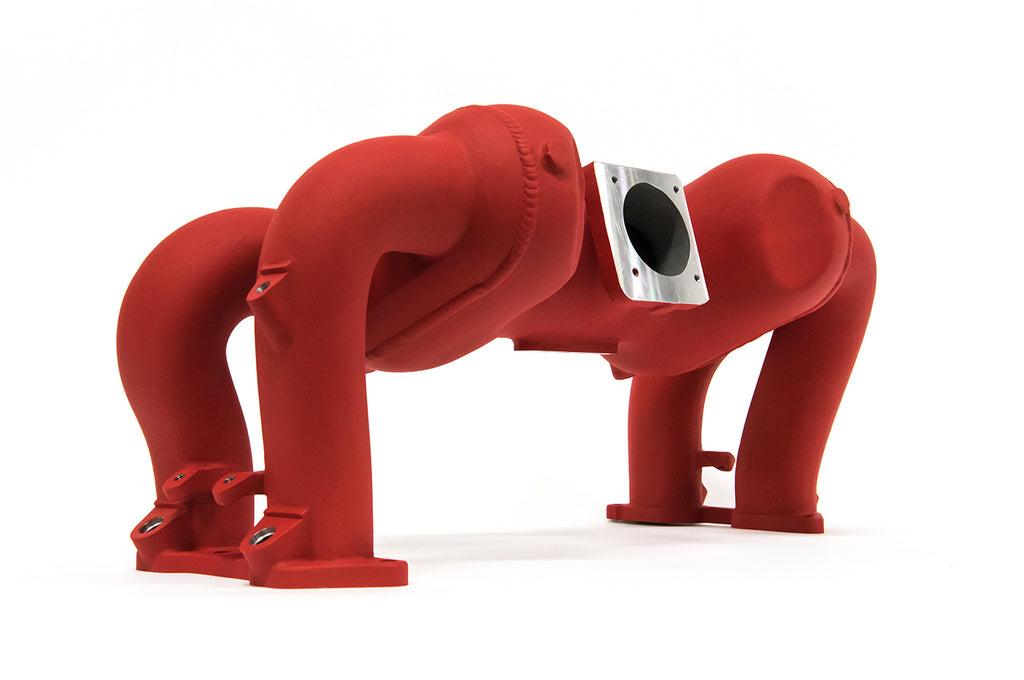

• Throttle Body Opening Accepts Larger Throttle Bodies up to 2.625” (66.675mm) or 70mm with mild porting

Installation Notes:
• Due to the large variety of rotated turbo kits on the market, we cannot guarantee fitment with every brand. Depending on the turbo location and sizing, interference with the cylinder 3 intake runner is possible.
• Some port matching may be required when used in conjunction with CNC or hand ported cylinder heads.
• The intake manifold is available with a standard or optional reverse throttle body orientation, allowing for more direct intercooler pipe routing.
• Larger throttle bodies can be used with proper modifications (Up to 70mm with minor porting) (Larger throttle bodies may also require adapter flanges)
• The intake manifold is flanged for 04+ STI drive by wire throttle bodies, but cable throttle bodies can be used with custom fitting and flange adapter.
• Standard configuration intercooler piping will need mild custom fabrication due to placement of throttle body.
• Reversed configuration requires the relocation of the alternator and removal of the A/C compressor. Installation is not a direct bolt on and will require custom intercooler piping.

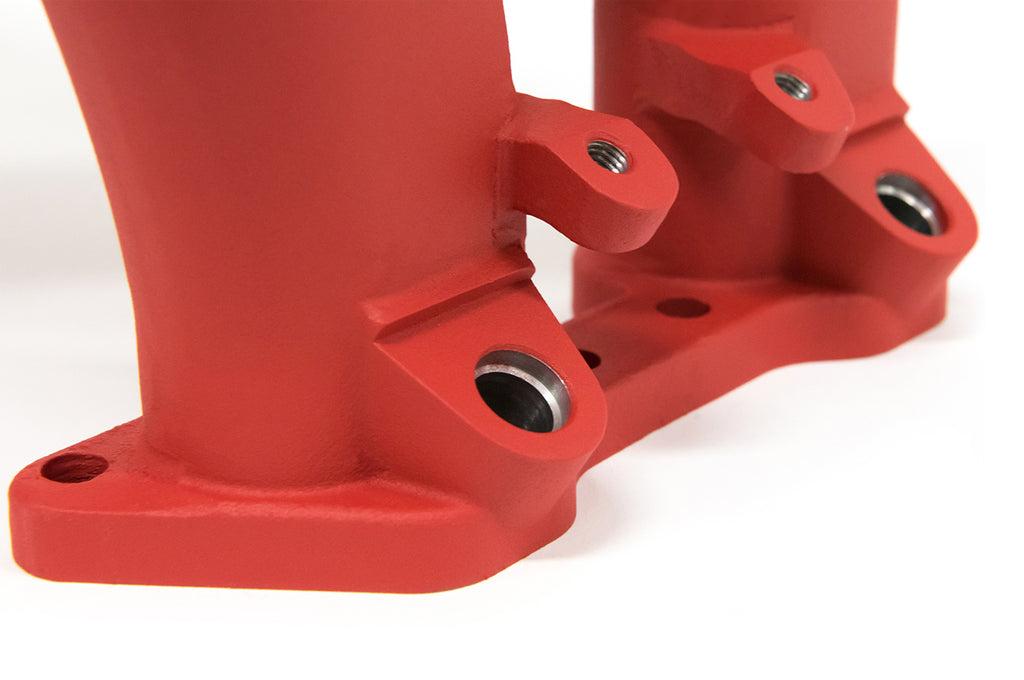

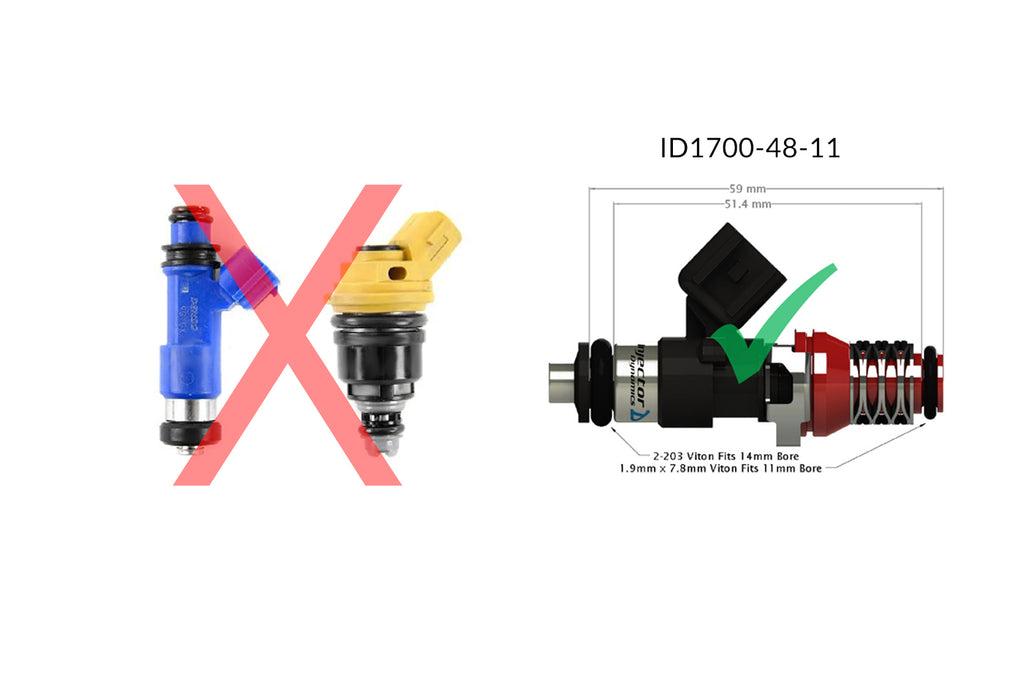

• The intake manifold is designed to use a common Subaru aftermarket top feed injector size. (48mm overall length / 11mm inlet – standard Subaru rail size / 14mm outlet) We recommend the use of Injector Dynamics brand injectors.
• Standard Subaru style injectors cannot be used. (Side Feeds, Stock STI Style Injectors)
• Not compatible with side feed to top feed conversion rails
• Requires aftermarket rails and lines, will not fit with stock
• Not compatible with top mount intercoolers.
• Not directly compatible with mounting the factory upper coolant reservoir. Custom brackets will need to be fabricated to mount.

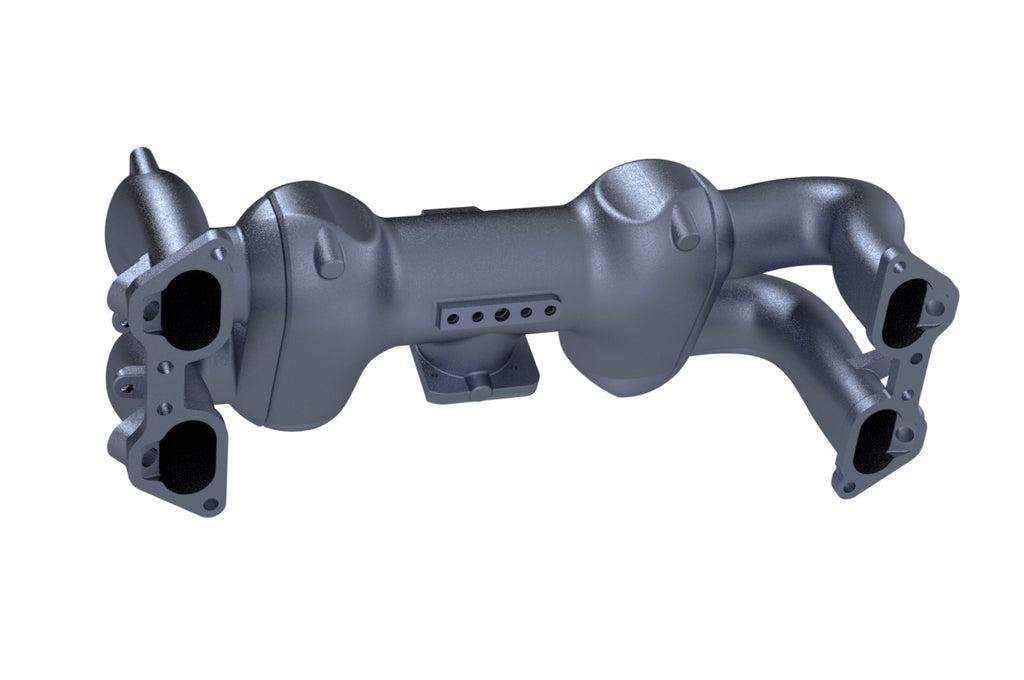

• The bottom of the center plenum features four 1/8″ and one 1/4″ NPT ports for vacuum accessories.
• 2008+ STI may require mild clearancing of A/C compressor line
