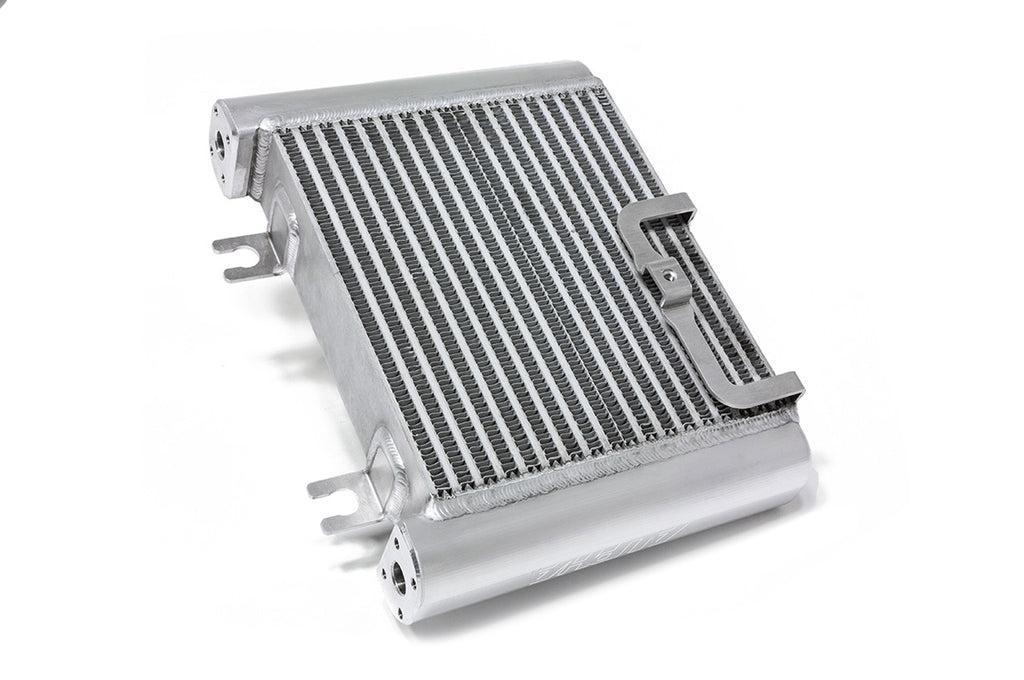

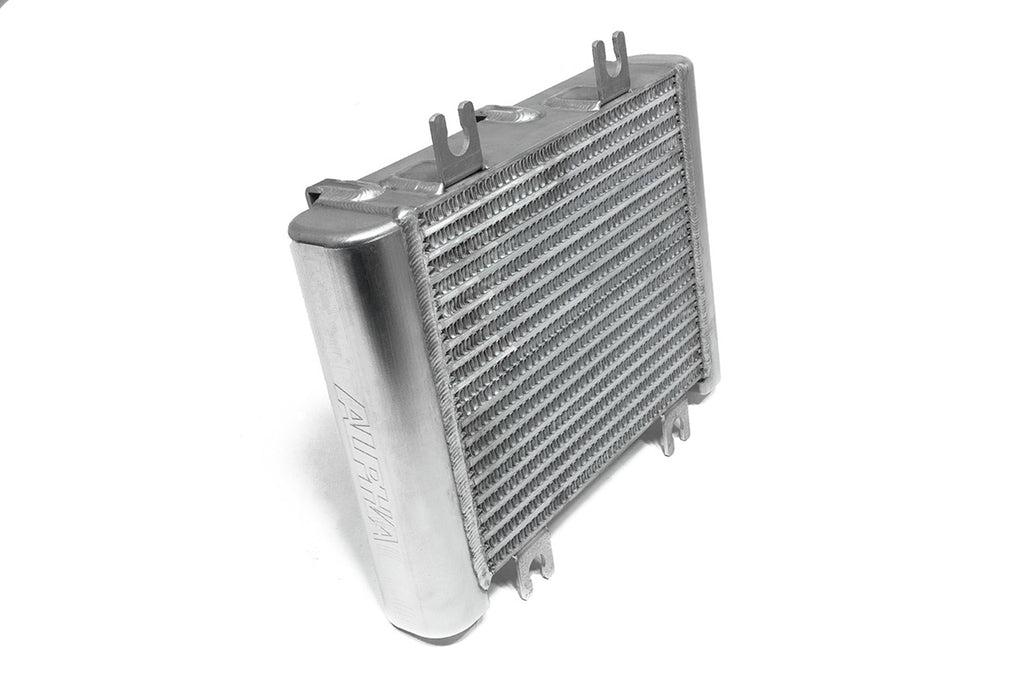

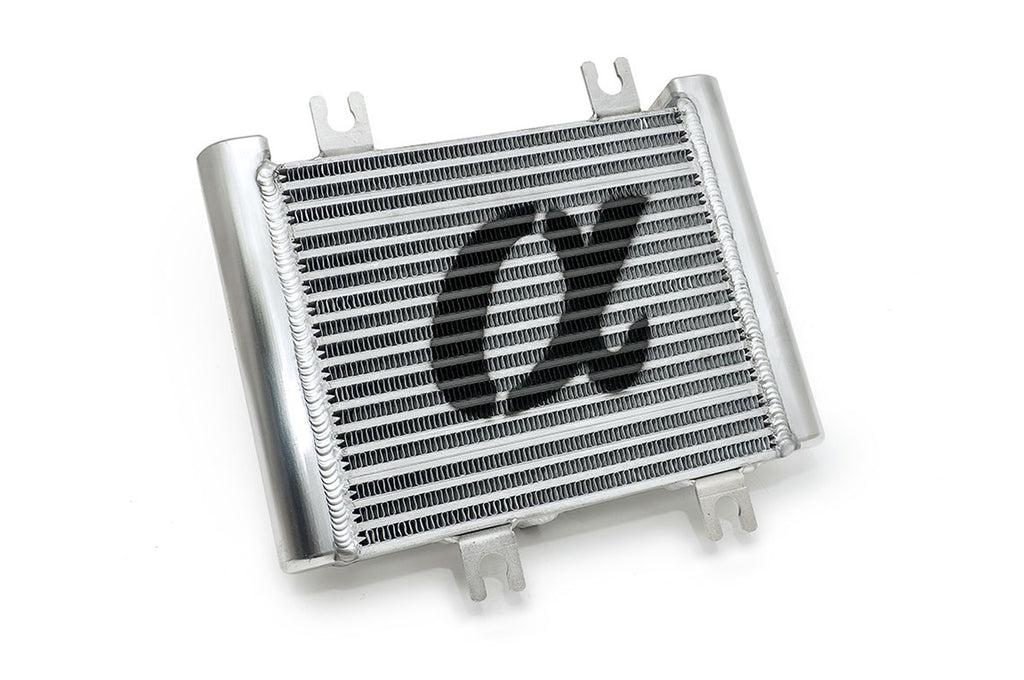

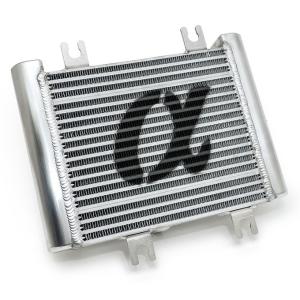

AMS Alpha Performance R35 GTR Engine Oil Cooler

The stock R35 GTR engine oil cooler (21305-JF02B) retails at an astonishing $8948.23! When we saw that price we knew we had to offer a solution. The AMS engineering team had some unique ideas to make an oil cooler upgrade which was easy to install, more efficient and affordable!

Vehicle Fitment:
2009-2020 Nissan R35 GT-R
• 2012+ do not reuse orings - replace with the AMS supplied gaskets

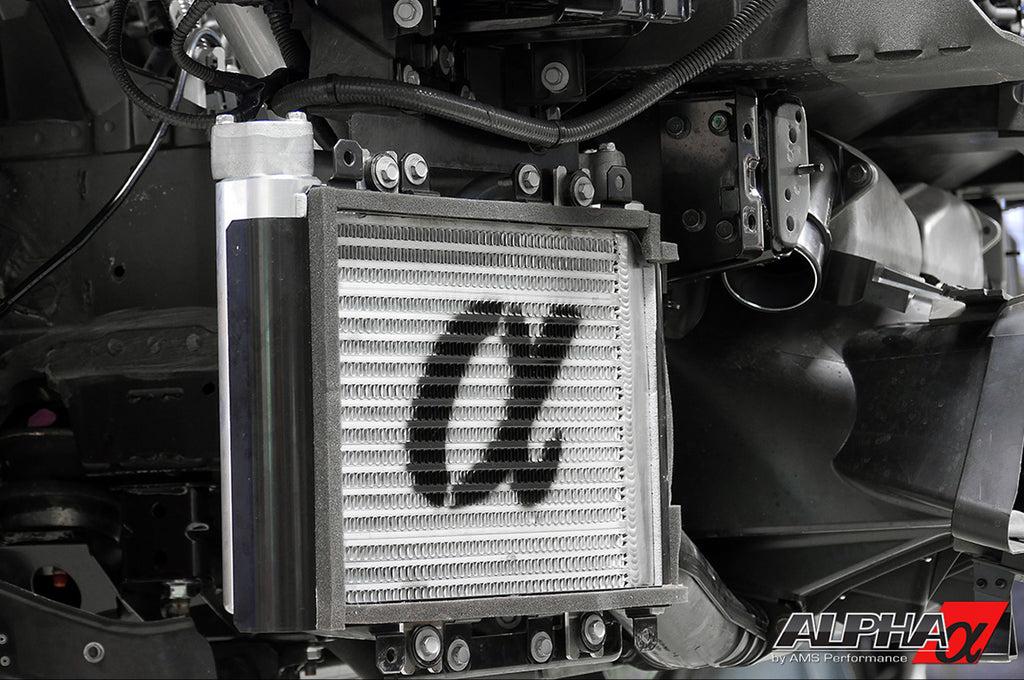

The Alpha Oil Cooler core uses all of the factory brackets, mounts, lines and shroud (no trimming required) exactly like the factory oil cooler core.

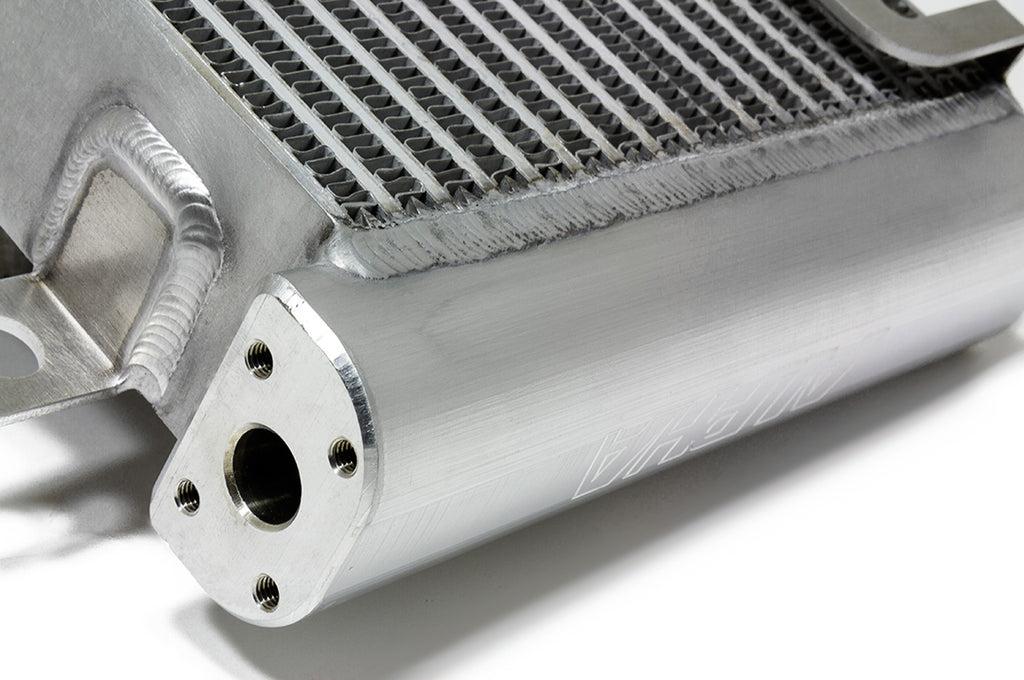

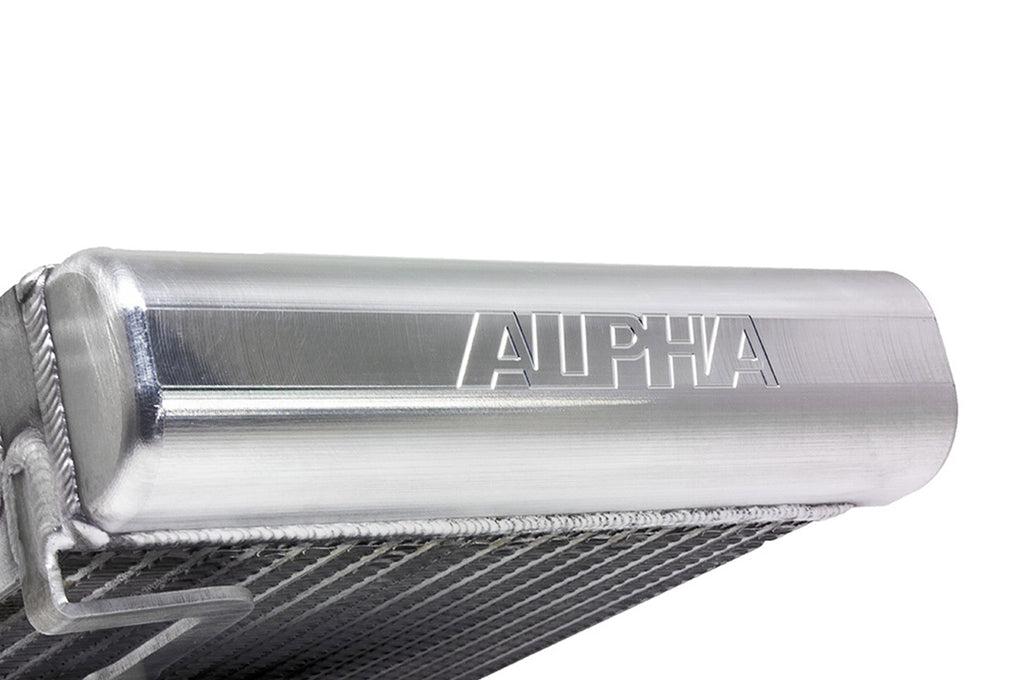

Bar and plate construction with a turbulator design increases the rate of flow and heat transfer for better cooling of the oil. The billet aluminum endtanks include a high temp foam making a proper seal to direct all of the air from the ducting through the core unlike the factory design. The thickness of the Alpha core is increased from the OEM 50mm size to 61mm boosting cooling and oil capacity.

Features:
• Billet Aluminum Endtanks
• Larger, more efficient core design
• Foam seal optimizes airflow through ducting
• Cost effective solution when replacing the factory oil cooler
• Uses OEM mounting, lines and shroud for a simple, true bolt in solution
• Includes everything needed for installation

Includes:
• Alpha Oil Cooler
• OEM Gaskets

Notes:
• We suggest the replacement of the factory oil cooler after any engine failure to prevent contamination of your new engine.
• 2012+ owners please do not re-use orings, replace with the AMS supplied gaskets
