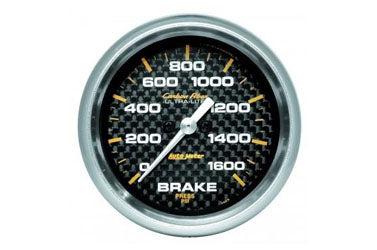

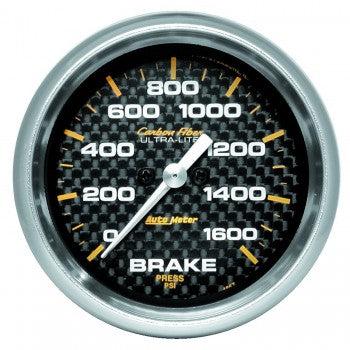

Brake Pressure: 0-1600 PSI - Carbon Fiber Stepper Motor Gauge (2 5/8)

Fits these Applications:
Universal Product

High brake system pressures make this an environment that few gauges are up to the task of handling. AutoMeter’s Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.

Features:

• Traditional incandescent lighting illuminates around the perimeter of the dial
• Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
• The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
• Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
