AEM Infinity Series 5 Harness for S2000 (30-3508) *Discontinued*
284.32€
Sold By: Baltic Turbo Motors
AEM Infinity Series 5 plug and play harness is compatible with the 2000-2005 Honda S2000 manual tran
SKU:AEM-30-3508
Categories:Performance Parts
Share:
AEM Infinity Series 5 plug and play harness is compatible with the 2000-2005 Honda S2000 manual transmission models. This harness is for the Infinity 506 or 508 ECU. Connectors include aux port for ancillary sensors.
*Discontinued*
Unfortunately this product has been discontinued by AEM.
Vehicle Fitment:
2000-2005 Honda S2000 F20/F22
• Manual Transmission
Includes:
(1) Harness
AEM Install Guide:
More Info:
Once you have determined which Infinity ECU will best support your S2000, you will need to purchase this 30-3508 S2000 Plug & Play adapter harness.
Includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.
The Infinity EMS delivers high-end engine control for the racing masses at a fraction of the cost. The Infinity Series 5 for Honda S2000 race engines is even more affordable than its larger Series 7 version because it is designed for smaller racing engines using low impedance injectors up to 6 cylinders or race engines driving up to 8 high impedance injectors. It features a smaller footprint than the Infinity Series 7 (5.855” x 5.55” x 1.8”) and a single, weatherproof 80-pin connector.
Complete Stand Alone Engine Control

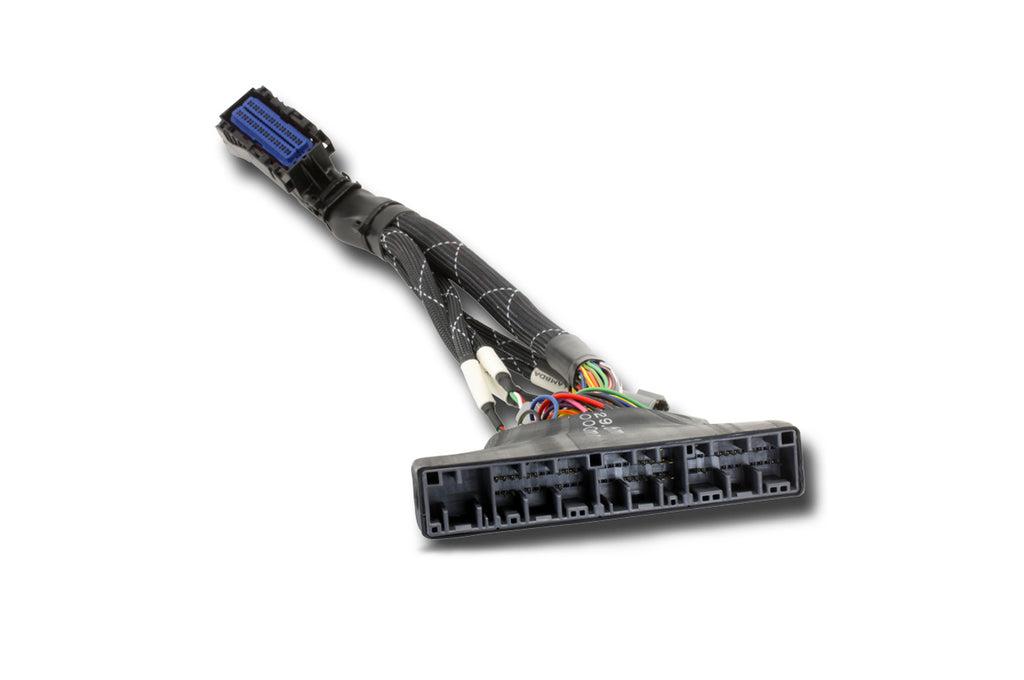

The Infinity ECU combines with the Plug & Play harness to replace the factory ECU. It controls all of the engine functions and the Plug & Play wiring harness adapter eliminates the need for cutting and splicing wires.
Plug & Play Harness with Expansion Port

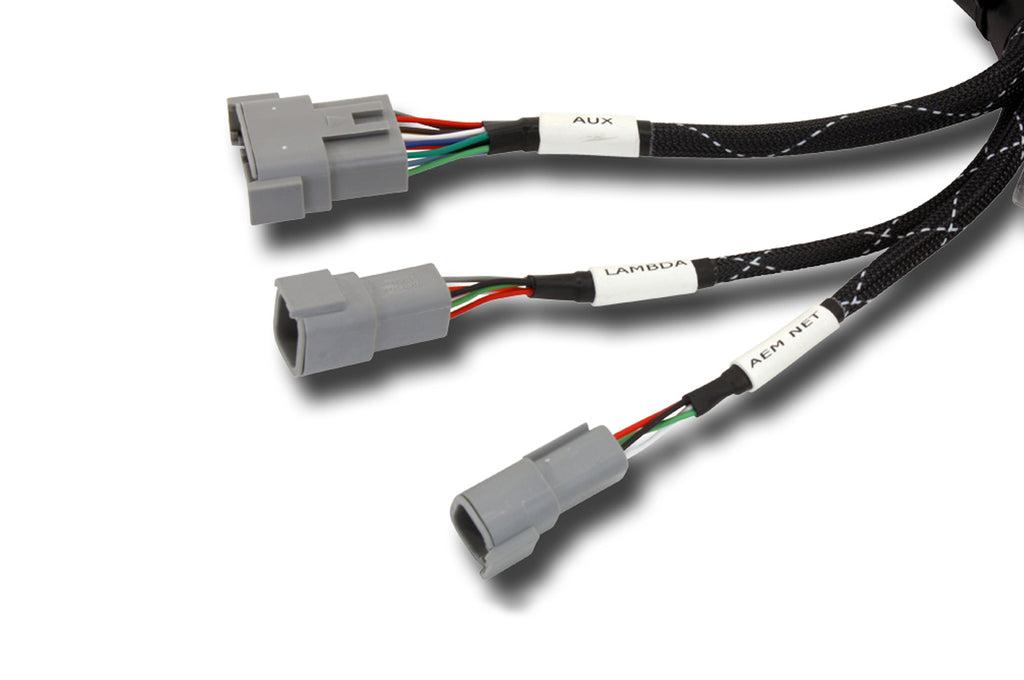

AEM’s sealed, weatherproof Plug & Play harness includes a Lambda connector, an AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors.
Read more about the Infinity and S2000 at
Discounts:
We are sorry, discount codes are not available for AEM products.
*Discontinued*
Unfortunately this product has been discontinued by AEM.
Vehicle Fitment:
2000-2005 Honda S2000 F20/F22
• Manual Transmission
Includes:
(1) Harness
AEM Install Guide:
More Info:
Once you have determined which Infinity ECU will best support your S2000, you will need to purchase this 30-3508 S2000 Plug & Play adapter harness.
Includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.
The Infinity EMS delivers high-end engine control for the racing masses at a fraction of the cost. The Infinity Series 5 for Honda S2000 race engines is even more affordable than its larger Series 7 version because it is designed for smaller racing engines using low impedance injectors up to 6 cylinders or race engines driving up to 8 high impedance injectors. It features a smaller footprint than the Infinity Series 7 (5.855” x 5.55” x 1.8”) and a single, weatherproof 80-pin connector.
Complete Stand Alone Engine Control
The Infinity ECU combines with the Plug & Play harness to replace the factory ECU. It controls all of the engine functions and the Plug & Play wiring harness adapter eliminates the need for cutting and splicing wires.
Plug & Play Harness with Expansion Port
AEM’s sealed, weatherproof Plug & Play harness includes a Lambda connector, an AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors.
Read more about the Infinity and S2000 at
Discounts:
We are sorry, discount codes are not available for AEM products.
