AEM Universal 12 Position Trim Pot (30-2056)

The AEM Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc.

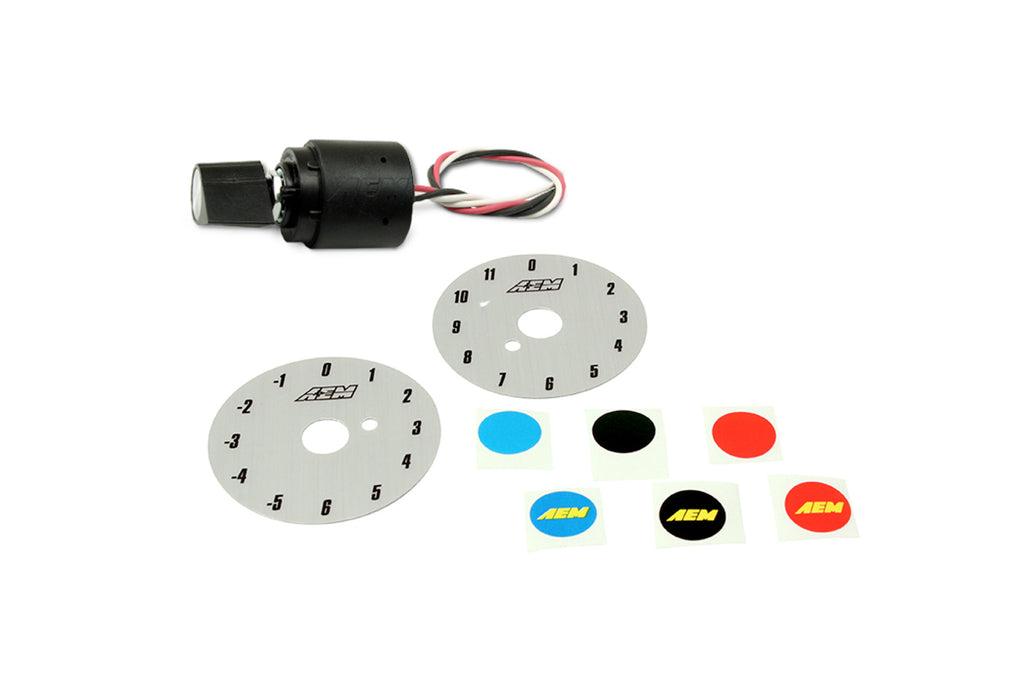

The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.

Specs:
• Total Resistance: 14.3KO
• Cycles Minimum: 10,000
• Positions: 12
• Degree Rotation: 330
• Mounting: 3/8' Hole
• Jam Nut: 1/2' Hex
• Knob Set Screw: 1/16' Allen
• Supply Current: 5 Vdc
• Output: .See table below
• Over mold weatherproof body with 12' leads
• 1 Red (Supply Voltage 5Vdc +/- .5)
• 1 Black (Ground)
• 1 White (Output)

Includes:
(1) 12 Position Trim Pot with Flying Lead
(2) Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11
(3) AEM Logo Knob Decals (Blue/Red/Black)
(3) Colored Knob Decals (Blue/Red/Black)
