AEM Air Inlet Temperature Sensor Kit 3/8 (30-2010)

AEM 3/8' air inlet temperature sensor kit (AIT) with 3/8' NPT male thread, aluminum bung, connector & pins. Senses the air temperature on the inlet side of the engine.

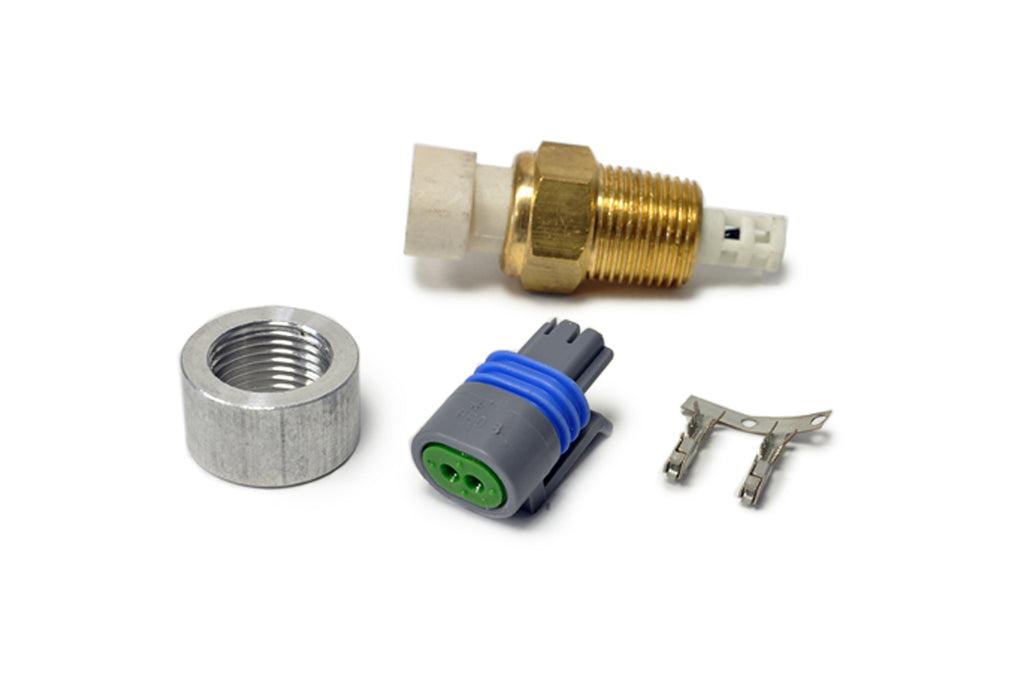

Includes:
• Air Temp Sensor with 3/8' NPT Male Thread
• 3/8' NPT Alumium Bung
• Mating Connector
• Pins & Wire Seals

AEM Install Guide:


AEM air inlet temperature sensor kit. Cooler AIT's mean more horsepower. Keep track of those temps with one of these AEM air inlet temperature sensor kits. Monitoring engine functions can stop a problem early for trouble-free performance.

• Accuracy: &lt, 1.5°C / 2.7°F
• Operating Temp: -40C to 135C / -40F to 275F
• Resistive Range (Ω): See Table
• Thermal Time Constant: &lt, 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
• Sensor Body Material: Brass
• Thread: 3/8' NPT
• Hex Size: 3/4'
• Installation Torque: 20Nm / 15 ft-lbs
• Weight: 33.3g
• Weatherproof connector
• Includes mating connector & pins
• Senses the air temperature on the inlet side of the engine
